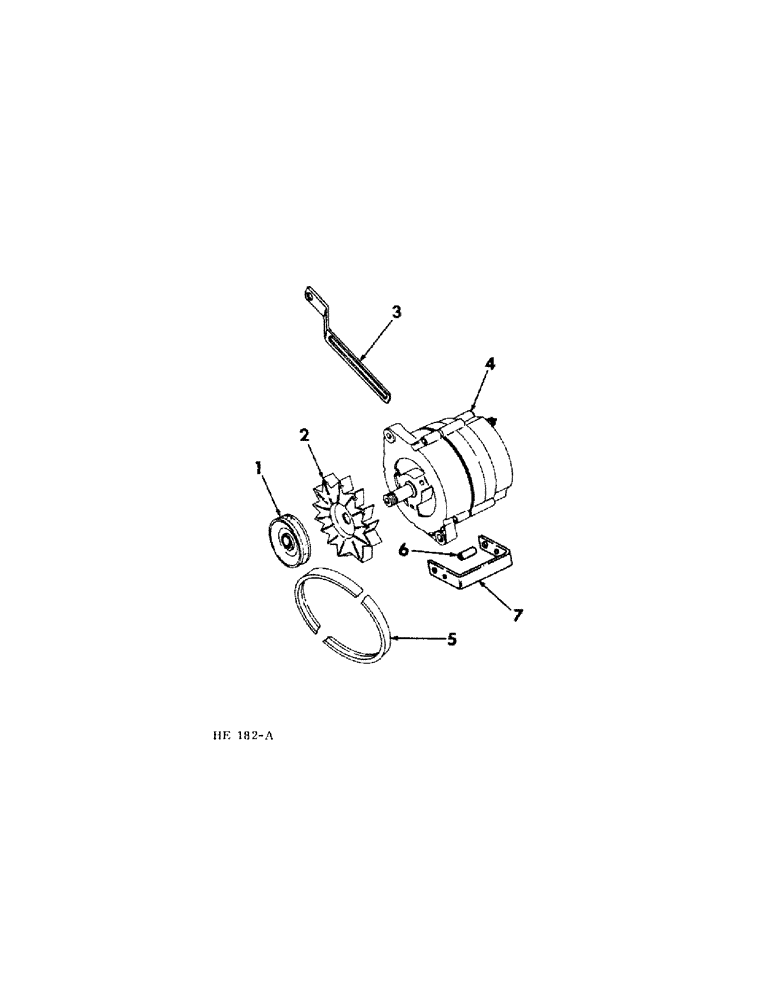

Запчасти Case IH 230 (08-7) - ELECTRICAL, ALTERNATOR MOUNTING AND DRIVE (06) - ELECTRICAL

1

1949358

PULLEY

alternator drive (606939C1)

1шт.

2

800612

FAN

alternator cooling (221425R1)

1шт.

3

368574R3

BRACE

alternator adjusting

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

1100805

GENERATOR

ALTERNATOR, 12 volt (for service components, Serial Range: refer-"Alternator")

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

596313R1

V-BELT,0.38" W x 44.50" L

Alternator drive 0.38" W x 44.50" L

1шт.

6

354159R1

SPACER,3/8" Pipe x 13/16"

alternator

1шт.

7

825249C1

CHANNEL, alternator support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
