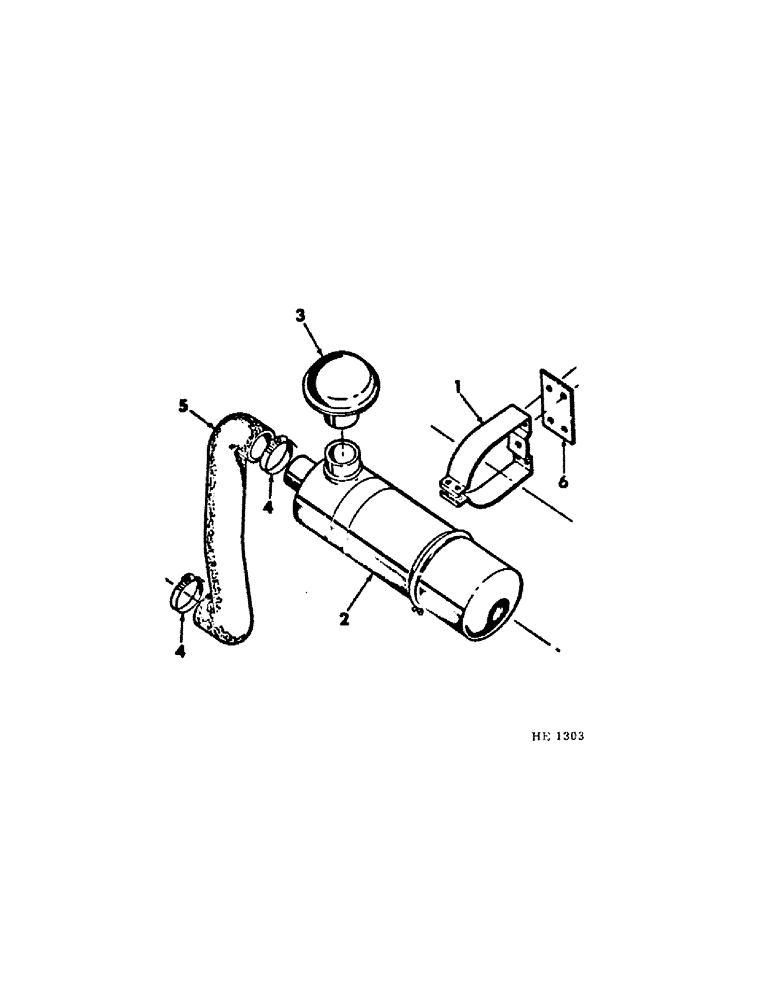

Запчасти Case IH 210 (E-05[A]) - FUEL SYSTEM, AIR CLEANER CONNECTIONS, SERIAL NUMBER 3700 AND SINCE (02) - FUEL SYSTEM

1

704536R1

BRACKET

CLAMP, air cleaner

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

CLEANER ASSY, dry type air (Donaldson and United) (For component parts refer to "AIR CLEANER")

1шт.

3

353019R92

CYLINDER END CAP

CAP, air intake

1шт.

4

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose

2шт.

5

825779C1

HOSE

air, Serial Range: cleaner-carburetor

1шт.

6

825340C1

BAR, hood reinforcing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
