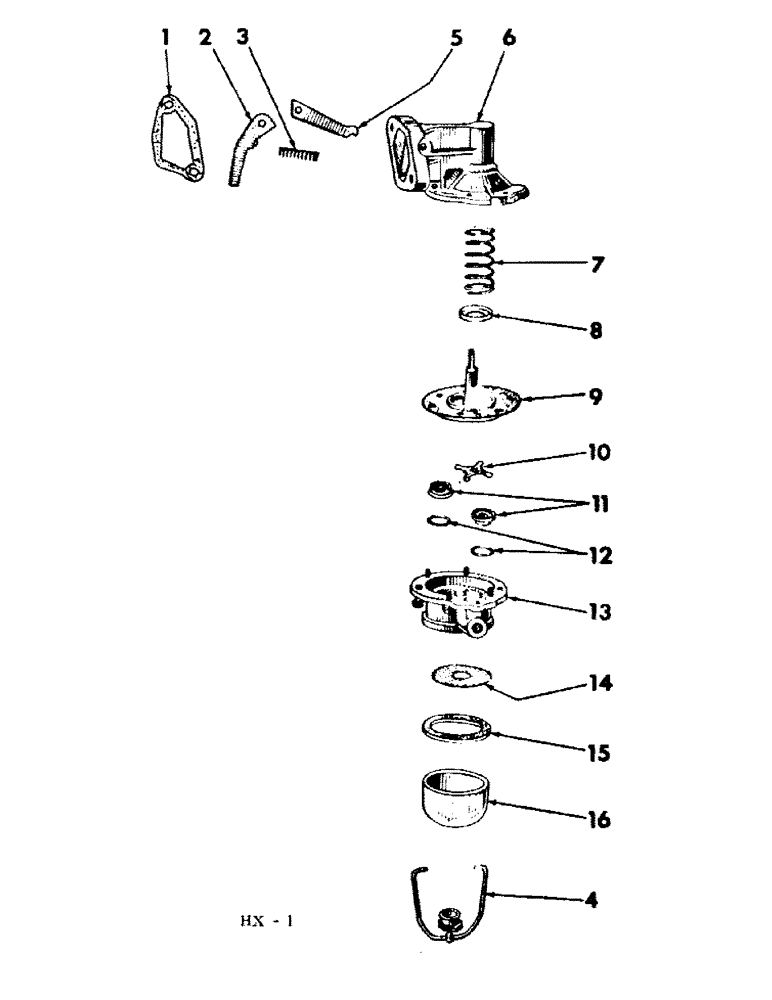

Запчасти Case IH 210 (E-04) - FUEL SYSTEM, MECHANICAL FUEL PUMP, GAS (02) - FUEL SYSTEM

57324DX

PUMP

fuel (A.C. Spark Plug Co. H5594549) (Includes 49124D, GASKET) (composed of all parts listed, unless otherwise noted)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

Not part of fuel pump.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of fuel pump.

1шт.

1

49124D

GASKET

fuel pump

1шт.

2

59993D

ARM, rocker

1шт.

36350D

PIN, rocker arm

1шт.

36351D

WASHER, rocker arm pin

1шт.

3

59081DA

SPRING, rocker arm

1шт.

4

98375R91

KIT

BAIL, fuel bowl

1шт.

5

59082DA

LINK, rocker arm

1шт.

6

BODY, pump (Order 1-57324DX, PUMP) (NSS)

1шт.

Not part of fuel pump.

1шт.

7

304156R1

SPRING, diaphragm

1шт.

8

59086D

RETAINER, diaphragm spg

1шт.

9

304138R91

GAUGE ASSY.

DIAPHRAGM, fuel pump

1шт.

10

59996D

PLATE, valve

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, valve plate

1шт.

11

59084DA

VALVE AND CAGE, intake & outlet

1шт.

12

59995D

GASKET, valve & cage

2шт.

13

59091D

COVER, fuel pump

1шт.

130894H

SCREW, No. 10-NF x 5/8" sltd-fil-hd

7шт.

122158

GEAR

WASHER, No. 10 lk

7шт.

14

59090D

FILTER

SCREEN, fuel pump

1шт.

15

59089D

GASKET

fuel bowl

1шт.

16

98376R91

BOWL

fuel pump (Includes 59089D, GASKET)

1шт.
