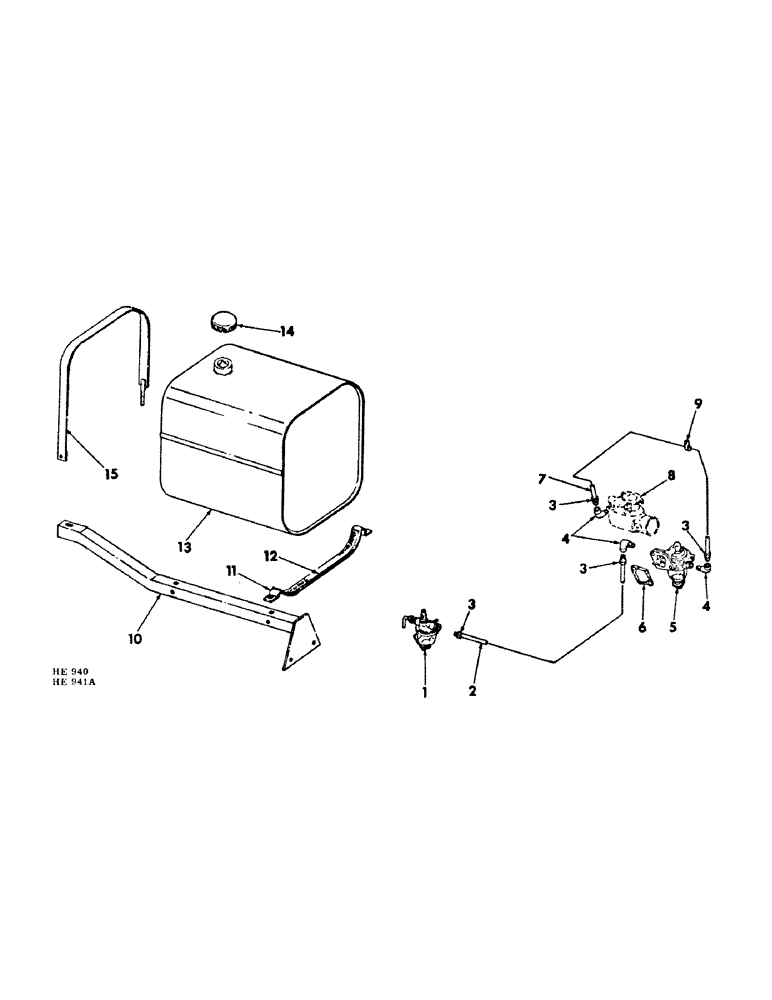

Запчасти Case IH 210 (E-02) - FUEL SYSTEM, FUEL SYSTEM AND TANK SUPPORTS (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
369988R91
FILTER CARTRIDGE
STRAINER ASSY, fuel (For service parts refer to "FUEL STRAINER")
1шт.
2
599240R2
TUBE, fuel strainer to pump 0.313" OD, 21.7, 7.7" Length
1шт.
3
222-503
TUBE NUT,1/2"-20
NUT, 5/16" tube
4шт.
4
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
tube
3шт.
5
57324DX
PUMP
FUEL PUMP W/GASKET ASSY, (For service parts refer to "FUEL PUMP")
1шт.
Not part of fuel pump.
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
Not part of fuel pump.
1шт.
6
49124D
GASKET
fuel pump
1шт.
7
385680R1
TUBE, Serial Range: pump-carburetor
1шт.
8
CARBURETOR, engine (For service parts refer to "PARTS CATALOG" ENG-1)
1шт.
9
140579
CLAMP, tube
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
10
599232R1
SUPPORT, fuel tank (Prior to Serial No. 3700 Shown)
1шт.
10
824947C1
SUPPORT, fuel tank (Serial No. 3700 and Since)
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
11
599236R11
STRAP W/LINING ASSY, fuel tank lower
2шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
12
LINING, fuel tank strap lower 3 ply canvas webbing 1 x 14" (Dealer to supply from bulk stock 990538R1)
2шт.
13
597771R91
TANK ASSY, fuel (Includes 1-65024-D CAP)
1шт.
14
65024D
CAP
fuel tank
1шт.
15
599238R11
STRAP, fuel tank upper
2шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 34
