(C-02[A]) - CARBURETED ENGINE, ENGINE FAN AND WATER PUMP PULLEY

Запчасти Case IH 210 (C-02[A]) - CARBURETED ENGINE, ENGINE FAN AND WATER PUMP PULLEY (01) - ENGINE

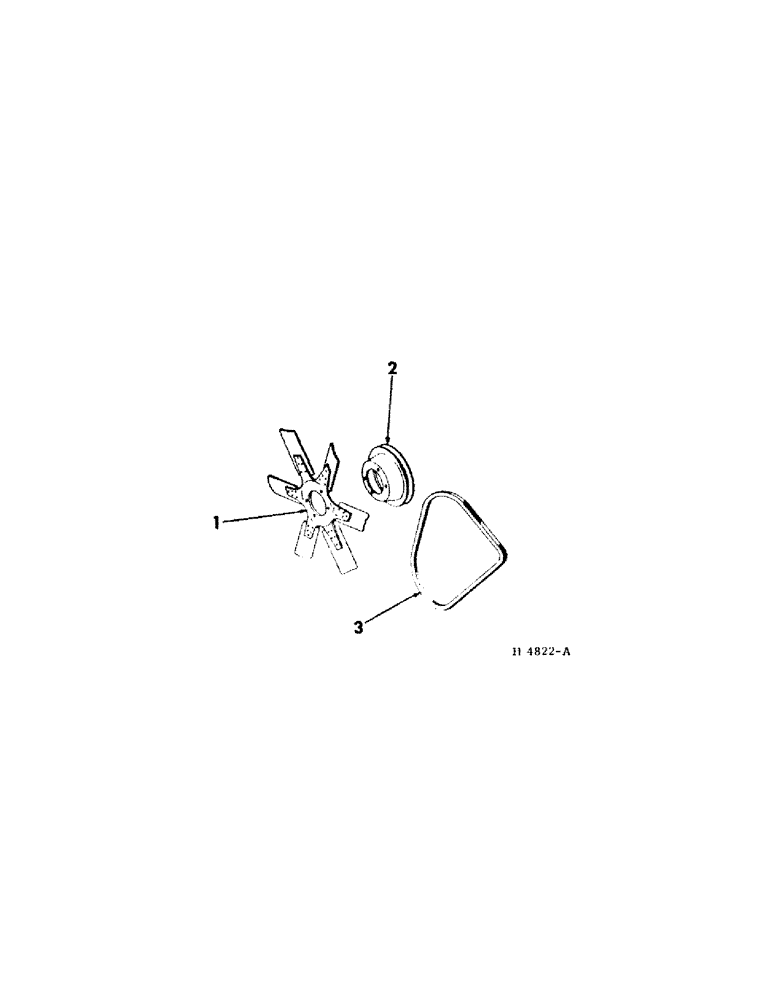

Схема запчастей Case IH 210 - (C-02[A]) - CARBURETED ENGINE, ENGINE FAN AND WATER PUMP PULLEY (01) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

370700R91

BLADE

FAN, engine

1шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4 x 3/4"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

367688R1

PULLEY

water pump

1шт.

3

596313R1

V-BELT,0.38" W x 44.50" L

Fan water pump & alternator 0.38" W x 44.50" L

1шт.
