(L-02) - WHEELS AND WHEEL WEIGHTS, MAIN WHEEL AND TIRES

Запчасти Case IH 210 (L-02) - WHEELS AND WHEEL WEIGHTS, MAIN WHEEL AND TIRES Wheels & Wheel Weights

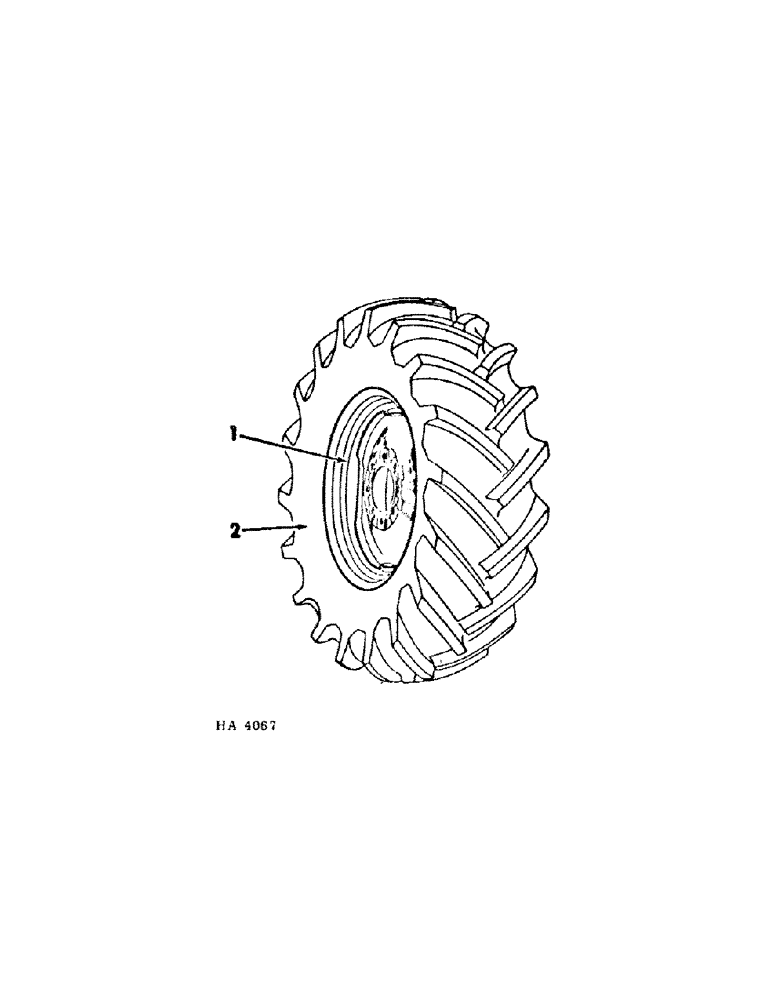

Схема запчастей Case IH 210 - (L-02) - WHEELS AND WHEEL WEIGHTS, MAIN WHEEL AND TIRES Wheels & Wheel Weights
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

614424R91

WHEEL ASSY.

WHEEL, 15 x 6 lb DC main

2шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 x 1-5/8" wheel

24шт.

U18588

NUT

1/2" wheel

24шт.

2

TIRE AND TUBE, 7.60-15, 4 ply agricultural (Code 1-3 Open Center)

4шт.
