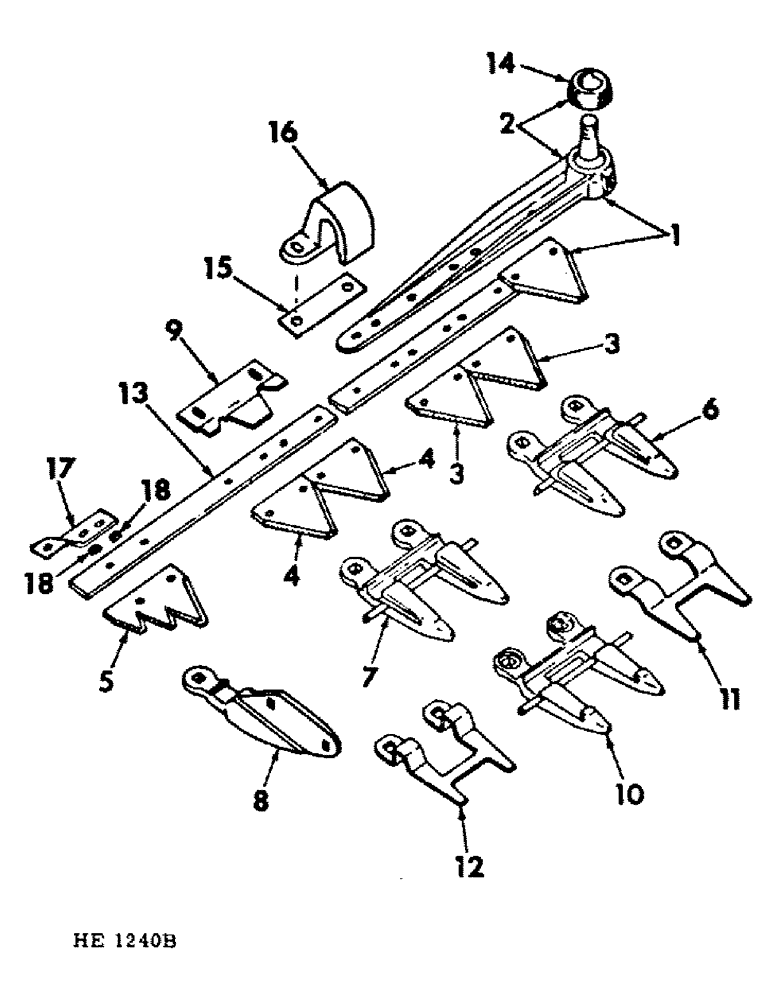

Запчасти Case IH 210 (Q-30) - PLATFORM, KNIFE AND GUARDS, SERIAL NUMBER 3700 AND SINCE Platforms

1

824705C91

KNIFE

1шт.

KNIFE ASSY, 14-1/2 ft. w/underserrated cr-pltd sections composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 823711C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (52) section 457607R1, (1) section 467456R1, (106) rivet 19869R1, (1) washer 21782R1, (1) pin 103086, (1) fitting 109454

1шт.

1

824583C91

KNIFE ASSY

1шт.

KNIFE ASSY, 14-1/2 ft. w/overserrated cr-plated sections (For use w/Flax composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 825281C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (52) section 599616R1, (1) section 467458R1, (106) rivet 19869R1, (1) washer 21782R1, (1) pin 103386, (1) fitting 109454

1шт.

1

824508C91

KNIFE

1шт.

KNIFE ASSY, 16-1/2 ft. w/underserrated cr-pltd sections composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 823711C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (60) section 457607R1, (1) section 467456R1, (122) rivet 19869R1, (1) washer 21782R1, (1) pin 103386, (1) fitting 109454

1шт.

1

825637C91

KNIFE ASSY

1шт.

KNIFE ASSY, 16-1/2 ft. w/overserrated cr-pltd sections (For use w/Flax composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 825281C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (60) section 599616R1, (1) section 467458R1, (11) rivet 19869R1, (1) washer 21782R1, (1) pin 103386, (1) fitting 109454

1шт.

1

824706C91

KNIFE

1шт.

KNIFE ASSY, 19-1/2 ft. w/underserrated cr-plated sections composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 837711C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (72) section 457607R1, (1) section 467456R1, (146) rivet 19869R1, (1) washer 21782R1, (1) pin 103386, (1) fitting 109454

1шт.

1

825638C91

1шт.

KNIFE ASSY, 19-1/2 ft. w/overserrated cr-pltd sections (For use w/Flax composed of: (1) bar (NSS), (1) end assy 824812C91, (4) section 825281C1, (4) rivet 104085, (3) rivet 104086, (1) rivet 104083, (72) section 599616R1, (1) section 467458R1, (146) rivet 19869R1, (1) washer 21782R1, (1) pin 103386, (1) fitting 109454

1шт.

2

824812C91

END

ASSY, knife head composed of: (1) head (NSS), (1) nut 102903H, (1) seal 151926C1

1шт.

102903H1

NUT

5/8" - NF slt

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21782R1

WASHER

21/32 x 1-1/2 x .054 ga

1шт.

3

823711C1

NO LONGER SERVICED

SECTION, smoooth cr-plated LH

4шт.

3

825281C1

KNIFE SECTION

SECTION, smooth cr-plated LH (For use w/Flax)

4шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 x 1-1/8" button-hd

3шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" button-hd

4шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4" button-hd

1шт.

4

457607R1

KNIFE SECTION

SECTION, cr-pltd underserrated (52-14-1/2 ft.) (60 -16-1/2 ft.) (72 - 19-1/2 ft.)

1шт.

4

599616R1

KNIFE SECTION

SECTION, cr-pltd overserrated (52 - 14-1/2 ft. Flax) (60 -16-1/2 ft. Flax) (72 - 19-1/2 ft. Flax)

1шт.

19869R1

RIVET, #5-1/2 x 9/16 small oval hd (106 - 14-1/2 ft.) (122 - 16-1/2 ft.) (146 - 19-1/2 ft.) Oval Hd, .211" x 9/16"

1шт.

5

467456R1

KNIFE SECTION

SECTION, smooth cr-plated triple RH (Not for use w/Flax Knife)

1шт.

5

467458R1

X

SECTION, underserrated cr-plated triple RH (For use w/Flax Knife)

1шт.

19869R1

RIVET, #5-1/2 x 9/16 small oval hd Oval Hd, .211" x 9/16"

2шт.

6

483500R3

GUARD

knife double LH

3шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16" No. 3 plow

3шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" Type 1 crg LH

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16 x 1-3/4" No. 3 plow

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

6шт.

REF: #6 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

7

613838R1

GUARD

knife double (25-14-1/2 ft.) (29 - 16-1/2 ft.) (35 - 19-1/2 ft.)

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16" No. 3 plow (25 - 14-1/2 ft.) (29 - 16-1/2 ft.) (35 - 19-1/2 ft.)

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" No. 3 plow (27 - 14-1/2 ft.) (31 - 16-1/2 ft.) (37 - 19-1/2 ft.) (for guards w/clips)

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16 x 1-3/4" No. 3 plow RH

1шт.

271501

SOCKET

NUT, 7/16" (1 per Bolt)

1шт.

8

540603R2

FINGER

GUARD, knife single RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16 x 1-3/4" No. 3 plow

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

613842R2

GUIDE

CLIP, knife hold down (13 - 14-1/2 ft.) (15 - 16-1/2 ft.) (18 - 19-1/2 ft.)

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" No. 3 plow (2 per Clip)

1шт.

10

823025C2

GUARD

tie (For use in stony ground condition) (27 - 14-1/2 ft.) (31 - 16-1/2 ft.) (35 - 19-1/2 ft.)

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2" crg (For use with guards having square mounting holes.) (54 - 14-1/2 ft.) (62 - 16-1/2 ft.) (70 - 19-1/2 ft.)

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2" (For use with guards having round mounting holes) (54 - 14-1/2 ft.) (62 - 16-1/2 ft.) (70 - 19-1/2 ft.)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" (1 per Bolt)

1шт.

11

823026C1

PLATE

guard tie (26 - 14-1/2 ft.) (30 - 16-1/2 ft.) (34 - 19-1/2 ft.) (For use in stony ground conditions)

1шт.

12

823027C1

PLATE, guard high arch tie (For use in stony ground conditions)

1шт.

13

BAR, knife back (NSS) (For service order "KNIFE ASSY")

1шт.

14

151296C1

SEAL, knife head end

1шт.

15

595213R1

STRIP

guide shim (as req'd)

2шт.

16

824981C1

GUIDE

high arch

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16 x 1-3/4" No. 3 plow

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

17

826074C1

SUPPORT

guard end RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16" x 1-3/4" No. 3

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

353232R1

SPACER,3/8" Pipe x .344

guard support RH

2шт.
