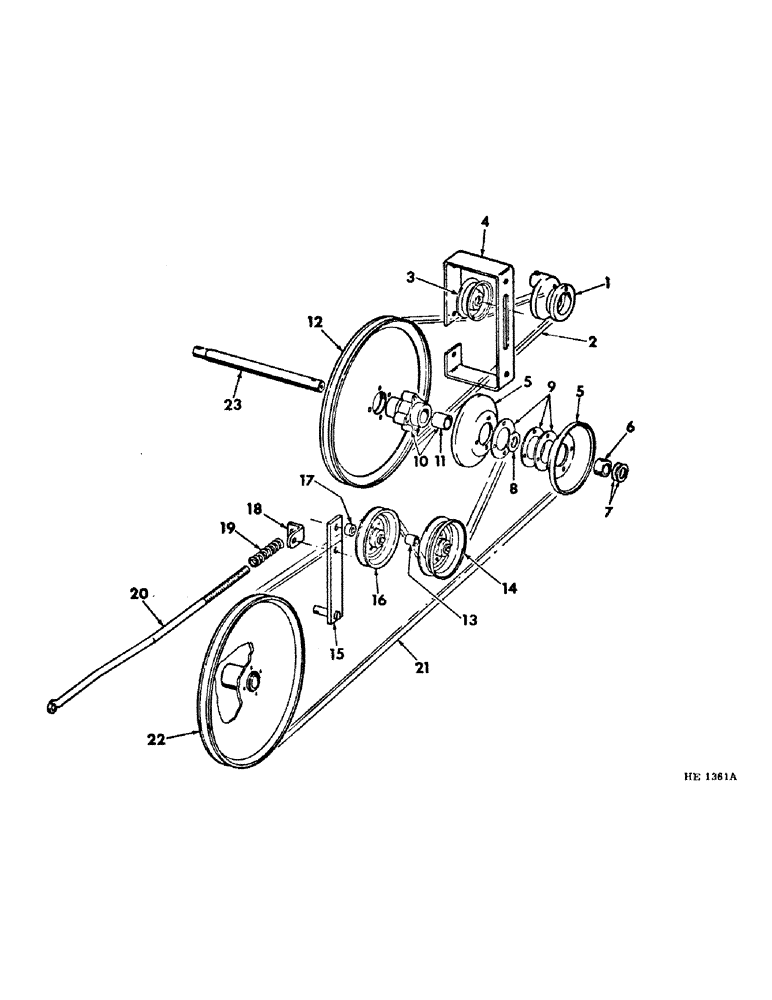

Запчасти Case IH 210 (Q-28) - PLATFORM, REEL DRIVE, SERIAL NUMBER 3700 AND SINCE Platforms

1

825648C1

PULLEY

knifedrive LH

1шт.

22977R1

PIN,3/8" x 1 3/4", Coiled

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

565917R1

V-BELT

Reel jackshaft drive

1шт.

3

559292R93

PULLEY

belt tightener

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2" crg

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32" sq hole x 1-1/4 x 11 ga

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

823085C1

SUPPORT, tightener pulley adj LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

609727R3

PULLEY

reel drive half

2шт.

6

824529C1

BUSHING

pulley locking

1шт.

22977R1

PIN,3/8" x 1 3/4", Coiled

1шт.

7

21226R1

WASHER

1-9/32 x 2 x 11 ga

1шт.

8

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.

9

609776R1

SPACER, reel drive pulley

6шт.

10

824534C11

HUB

W/BUSHING, reel drive

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

597980R1

BUSHING,32.26mm ID x 38.2mm OD x 25.4mm L

reel drive hub

2шт.

12

825750C1

PULLEY, reel jackshaft driven

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

1/2 x .88 drive belt idler pulley

1шт.

14

566519R91

PULLEY

drive belt idler

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

824530C1

ARM

tightener pulley

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

16

574051R91

PULLEY

drive belt tightener

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

M42297

SPACER

3/4 x 1/2 drive belt tightener pulley

1шт.

18

824861C1

ANGLE

spring rod support

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

VC682

VALVE SPRING

SPRING, tightener

1шт.

20

824865C1

ROD

tightener spring

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

124847

COLLAR

5/8" jam

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

824880C1

BELT,0.63" W x 152.80" L

Bat Reel Drive 0.63" W x 152.80" L

1шт.

22

824527C1

PULLEY

bat reel driven

1шт.

Q3953

KEY,Gib, 3/8" Sq x 3"

3/8 x 3" gib-hd

1шт.

23

824539C1

SHAFT

reel arm LH

1шт.
