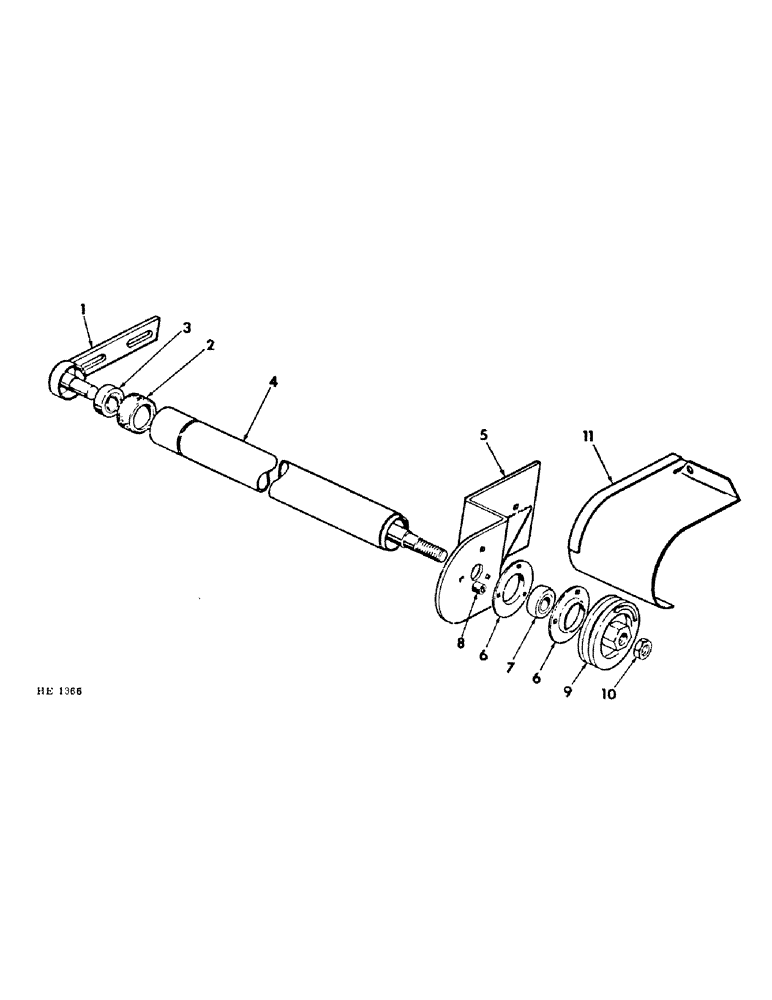

Запчасти Case IH 210 (Q-26) - PLATFORM, CONVEYOR DRIVE ROLLER AND SHIELD, SERIAL NUMBER 3700 AND SINCE Platforms

1

824563C1

SUPPORT ASSY.

SUPPORT, drive roller front

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

592142R1

RETAINER

drive roller front

2шт.

3

608130R91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

roller front

2шт.

4

824901C1

ROLLER

apron drive LH

1шт.

4

824902C1

ROLLER

apron drive RH Shown

1шт.

5

825658C1

SUPPORT

roller rear LH

1шт.

5

825659C1

SUPPORT, roller rear RH Shown

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGETTE, bearing mounting rear

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

824933C91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING, drive roller

2шт.

8

23323H

SPACER,1/4" Pipe x 1/2"

1/4 x 1/2" std pipe

6шт.

9

824910C1

PULLEY

apron roller driven LH (RH thread)

1шт.

9

824911C1

PULLEY

apron roller driven RH (Shown) (LH thread)

1шт.

9

824911C1

PULLEY

apron roller driven RH (Shown) (LH thread)

1шт.

10

22346R1

JAM NUT,Jam, 3/4"-10, G5, LH

3/4" jam RH (w/LH thread)

1шт.

10

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" jam LH (w/RH thread)

1шт.

11

824934C1

SHIELD

apron drive pulley LH

1шт.

11

824935C1

SHIELD

apron drive pulley RH Shown

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
