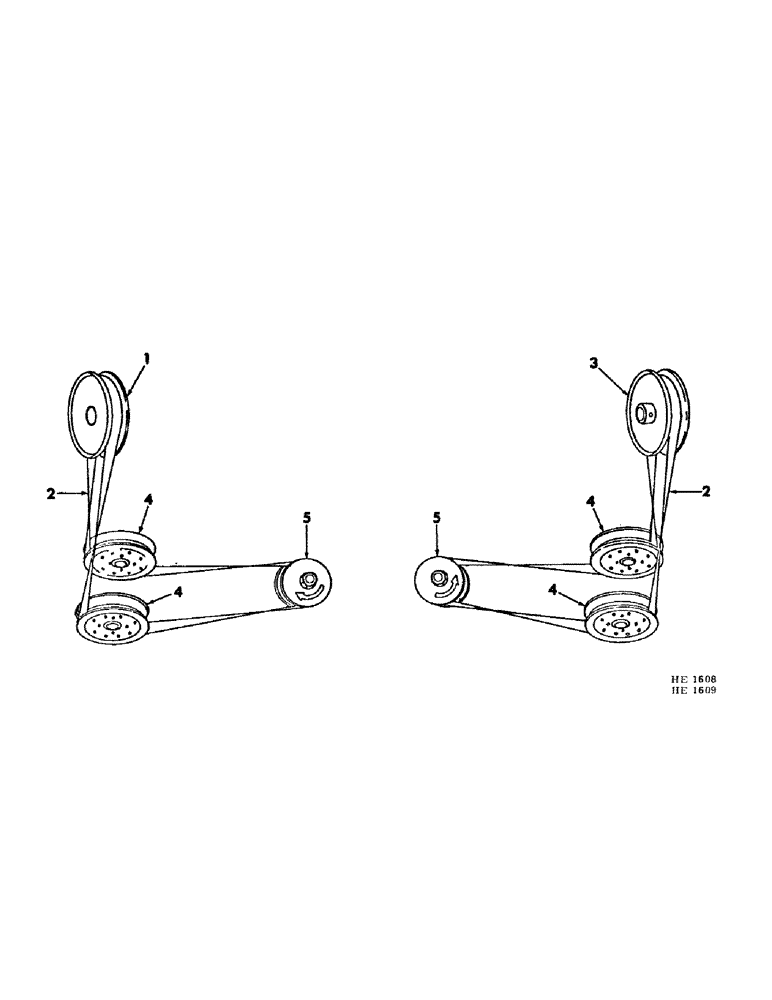

Запчасти Case IH 210 (Q-25) - PLATFORM, CONVEYOR DRIVE, SERIAL NUMBER 3700 AND SINCE Platforms

1

PULLEY, conveyor drive LH (For service parts refer to "PLATFORM DRIVE SHAFT AND KNIFE PITMAN")

1шт.

2

619117R1

V-BELT,0.63" W x 73.38" L

Roller drive 0.63" W x 73.38" L

2шт.

3

PULLEY, conveyor drive RH (For service parts refer to "PLATFORM DRIVE SHAFT AND KNIFE PITMAN")

1шт.

4

161173C91

PULLEY

tightener

4шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2 x 2-1/4 crg

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

PULLEY, apron roller LH & RH (For service parts refer to "CONVEYOR DRIVE ROLLER AND SHIELD")

1шт.
