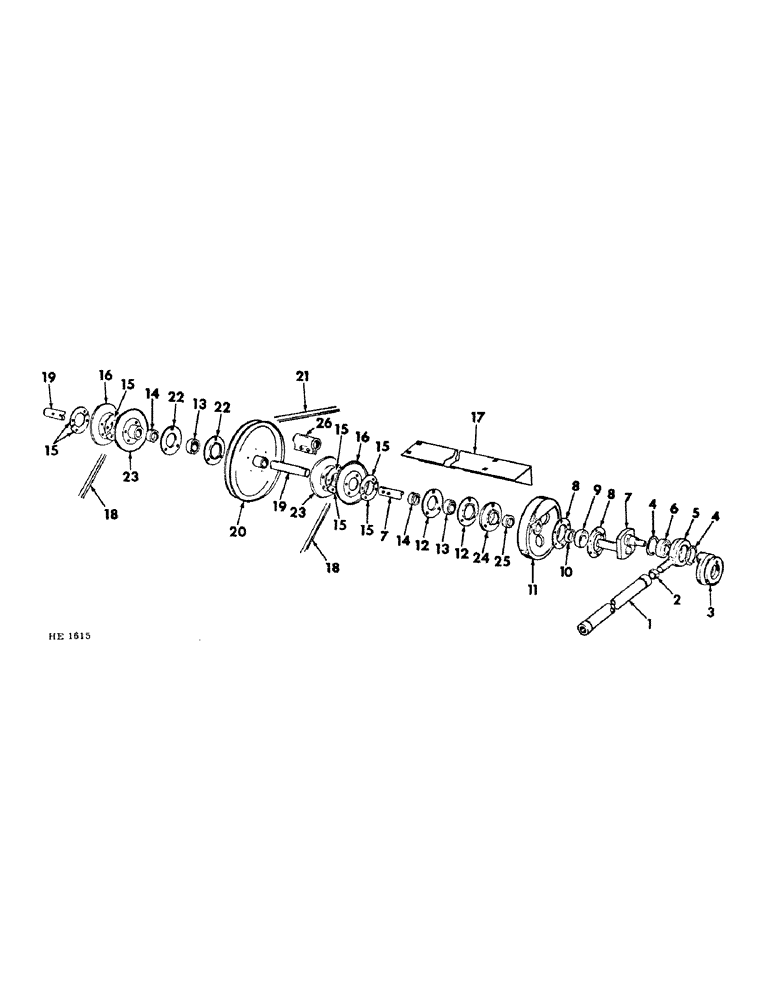

Запчасти Case IH 210 (Q-24) - PLATFORM, PLATFORM DRIVE SHAFT AND KNIFE PITMAN, SERIAL NUMBER 3700 AND SINCE Platforms

1

825661C1

PITMAN

knife drive

1шт.

2

826108C1

NUT

jam (LH thread)

1шт.

3

825648C1

PULLEY

knife drive LH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

22977R1

PIN,3/8" x 1 3/4", Coiled

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

606970C1

RING

RETAINER, pitman bearing

2шт.

5

825691C1

HOUSING

pitman bearing

1шт.

6

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, pitman (opt w/608697R91 BEARING)

1шт.

6

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

pitman (opt w/584148R91 BEARING)

1шт.

7

823118C2

SHAFT, flywheel drive 14-1/2 ft.

1шт.

7

823080C2

SHAFT

flywheel drive 16-1/2 ft.

1шт.

7

823081C2

SHAFT, flywheel drive 19-1/2 ft.

1шт.

8

825620C1

RETAINER

LH bearing

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

9

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel drive shaft LH

1шт.

10

455104R11

COLLAR

W/SCREW, bearing lock LH

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

1шт.

11

825647C1

FLYWHEEL, knife drive

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" gib-hd

1шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing mounting

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

617668R91

BALL BEARING

flywheel drive shaft

2шт.

14

557995R11

COLLAR

W/SCREW, bearing locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" cup-pt set

2шт.

15

592127R1

SPACER

roller drive

24шт.

16

592730R1

PULLEY

SHEAVE, roller drive half

2шт.

17

823124C1

ANGLE, drive shaft shield 14-1/2 ft.

1шт.

17

823105C1

ANGLE, drive shaft shield 16-1/2 ft.

1шт.

17

823106C1

ANGLE, drive shaft shield 19-1/2 ft.

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

619117R1

V-BELT,0.63" W x 73.38" L

Roller drive 0.63" W x 73.38" L

2шт.

19

823082C2

SHAFT, platform drive

1шт.

20

597718R1

PULLEY, platform drive

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" gib-hd

1шт.

21

591878R1

V-BELT,0.88" W x 139.40" L

Platform drive 0.88" W x 139.40" L

1шт.

22

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

23

825770C1

PULLEY

roller drive LH and RH

2шт.

20767R1

PIN,3/8" x 2 1/4", Coiled

2шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1" Type 8

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

24

626886R91

FLANGED BEARING

W/FLANGETTES, flywheel drive shaft (16-1/2 ft. & 19-1/2 ft. only)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

25

460662R11

RETAINER

COLLAR W/SCREW, bearing locking (16-1/2 ft. & 19-1/2 ft. only)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" cup-pt set

1шт.

26

592124R1

COUPLING

drive shaft connecting

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
