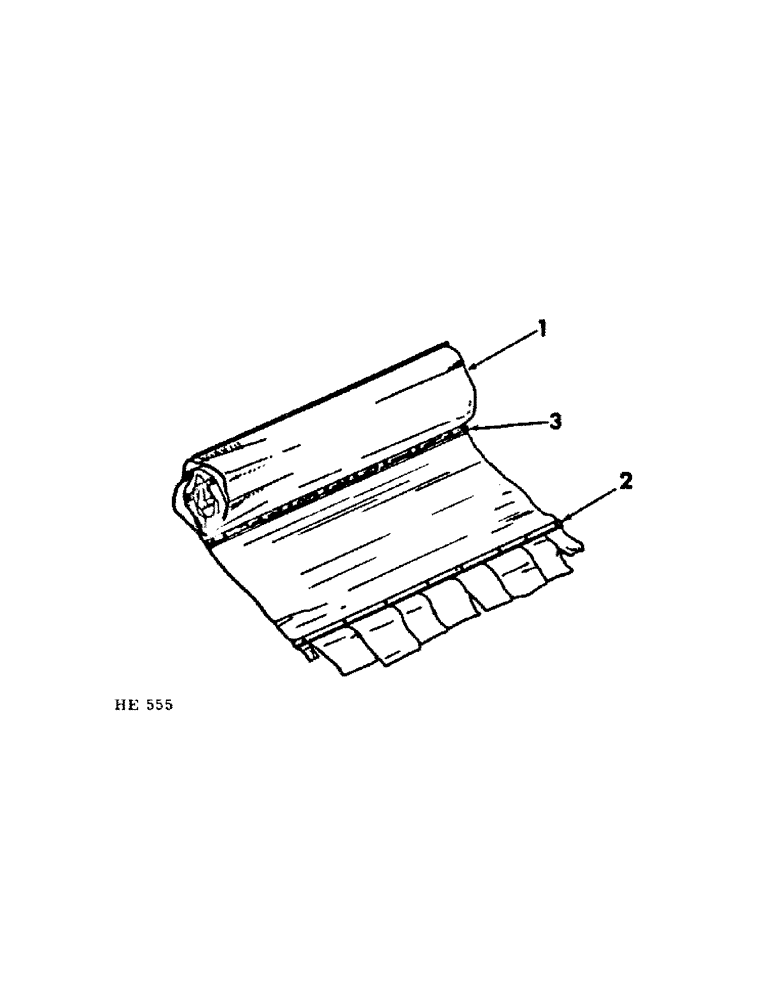

Запчасти Case IH 210 (Q-22) - PLATFORM, PLATFORM CANVAS WIDE APRONS, SERIAL NUMBER 3700 AND SINCE Platforms

1

597124R93

APRON

ASSY, (14-1/2 ft.)

2шт.

1

597119R94

APRON

ASSY, (16-1/2 ft.)

2шт.

1

597120R94

APRON

ASSY, (19-1/2 ft.)

1шт.

2

612288R21

BAR ASSY.

BAR ASSY, clamping (Includes Screws, Nuts & Washers)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

#10 - 32 x 1-1/4" rd-hd sltd

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

3

618633R3

SLAT

apron

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" tub

1шт.

20319R1

RIVET

.186 x 1/2" tub

1шт.
