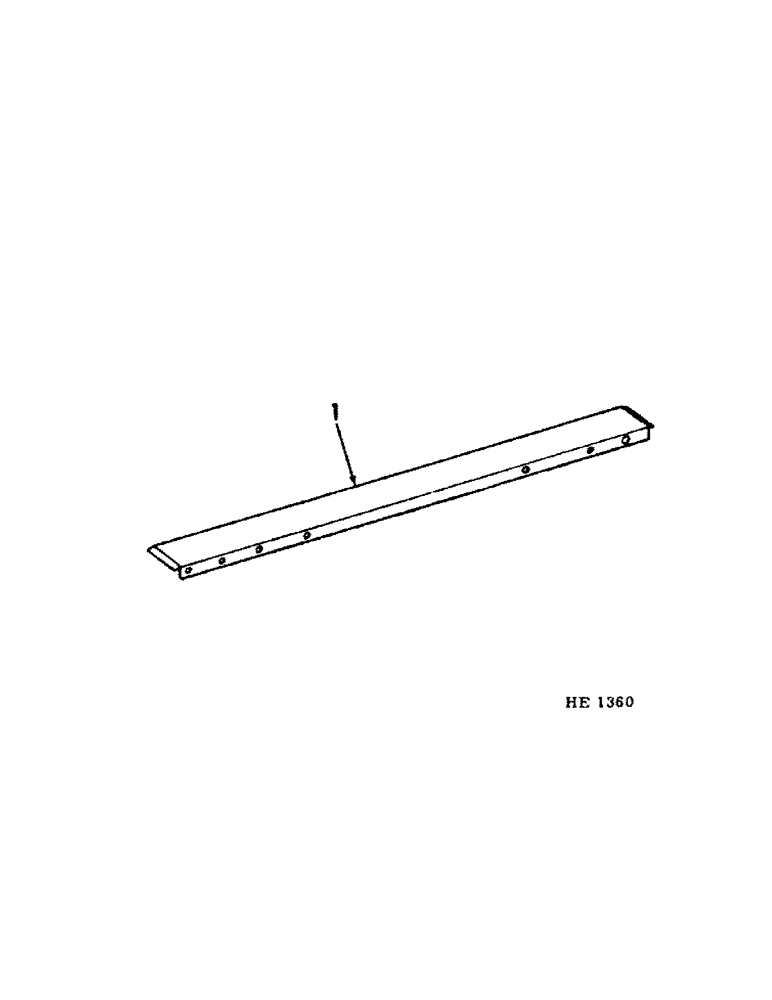

Запчасти Case IH 210 (Q-22[A]) - PLATFORM, APRON SUPPORTS, SERIAL NUMBER 3700 AND SINCE Platforms

1

824659C1

ANGLE

apron front support LH 14-1/2 ft.

1шт.

1

824660C1

ANGLE

apron front support RH 14-1/2 ft.

1шт.

1

824571C1

ANGLE

apron front support LH 16-1/2 ft.

1шт.

1

824572C1

ANGLE

apron front support RH 16-1/2 ft.

1шт.

1

824661C1

ANGLE

apron front support LH 19-1/2 ft.

1шт.

1

824662C1

ANGLE

apron front support RH 19-1/2 ft.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (8-14-1/2 ft.) 910 - 16-1/2 ft.) (12 - 19-1/2 ft.)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.
