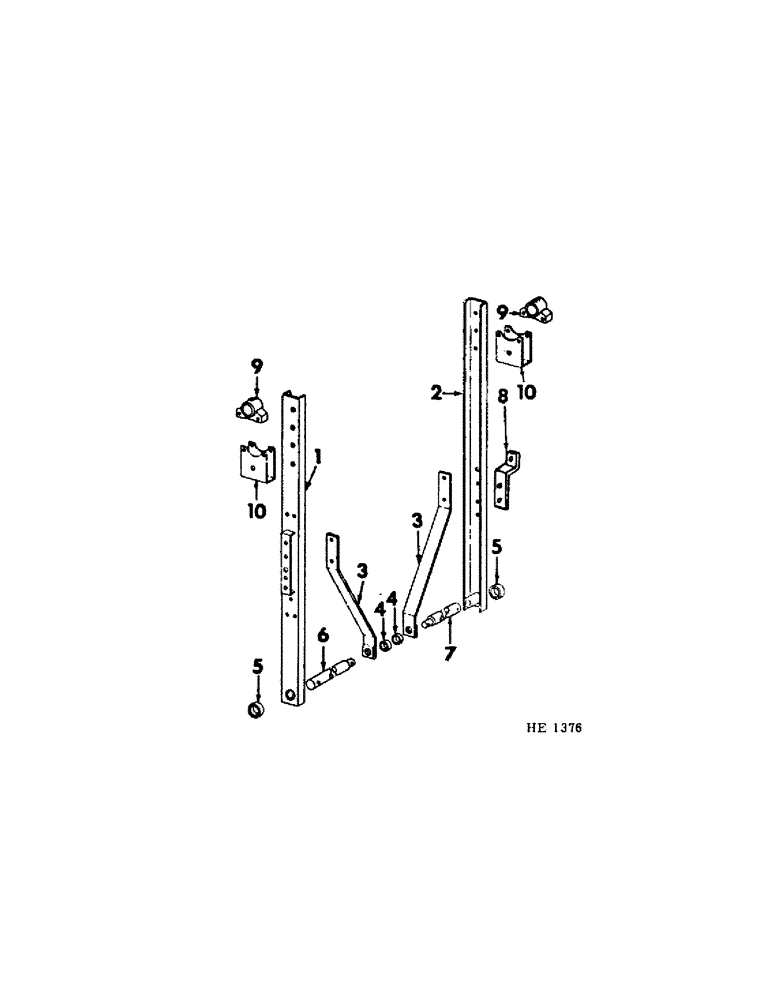

Запчасти Case IH 210 (Q-21) - PLATFORM, REEL SUPPORT ARMS AND BRACES Platforms

1

824522C1

ARM

reel support LH

1шт.

2

824523C1

ARM

reel support RH

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga (RH)

1шт.

3

824599C1

BRACE

reel support arm

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

825706C1

BUSHING

reel arm locking

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

5

824529C1

BUSHING

reel arm locking

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

6

824539C1

SHAFT

reel arm LH

1шт.

7

824540C1

SHAFT

reel arm RH

1шт.

8

825604C1

SUPPORT

slave cylinder upper

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

824537C1

BEARING CARRIER,1.46" ID x 2"

bat reel support

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

824538C1

SUPPORT

bat reel support bearing

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2"

3шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

1шт.

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
