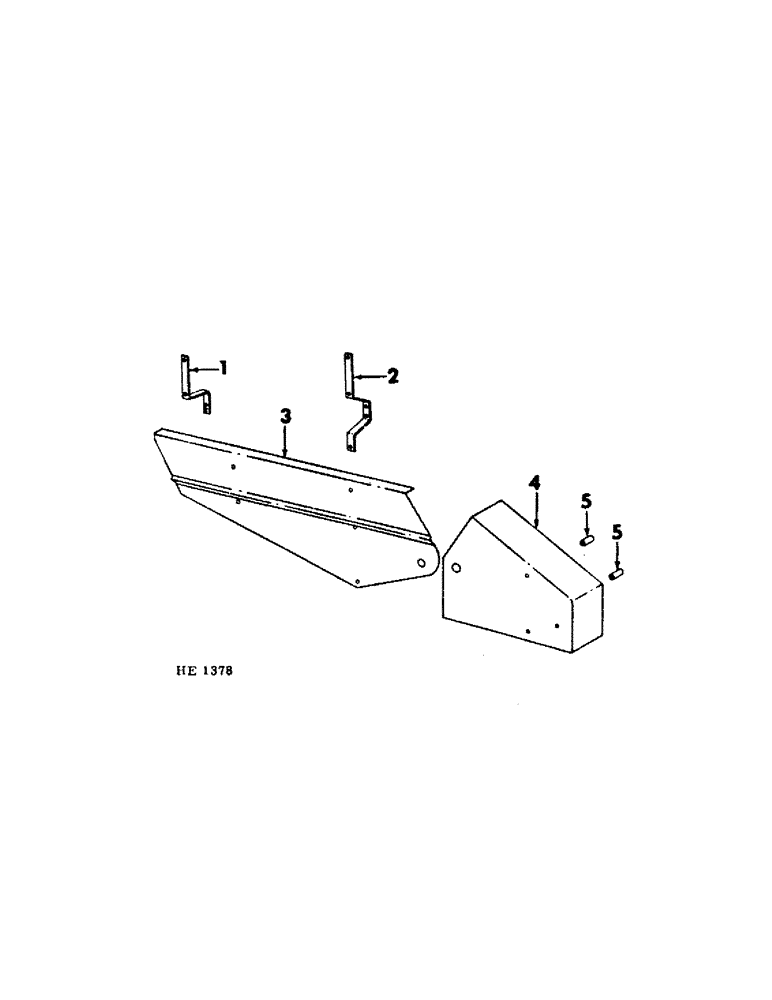

Запчасти Case IH 210 (Q-21[A]) - PLATFORM, REEL DRIVE SHIELDS LEFT HAND, SERIAL NUMBER 3700 AND SINCE Platforms

1

824520C1

SUPPORT

reel drive shield front

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

825728C1

SUPPORT

reel drive shield

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

824519C1

SHIELD

reel drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

5шт.

619856R1

WASHER

13/32 x 1 x 16 ga

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

823086C1

SHIELD, reel drive rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

607706R1

SPACER,3/8" Pipe x 1 5/8"

3/8 x 1-5/8" std pipe rear shield

2шт.
