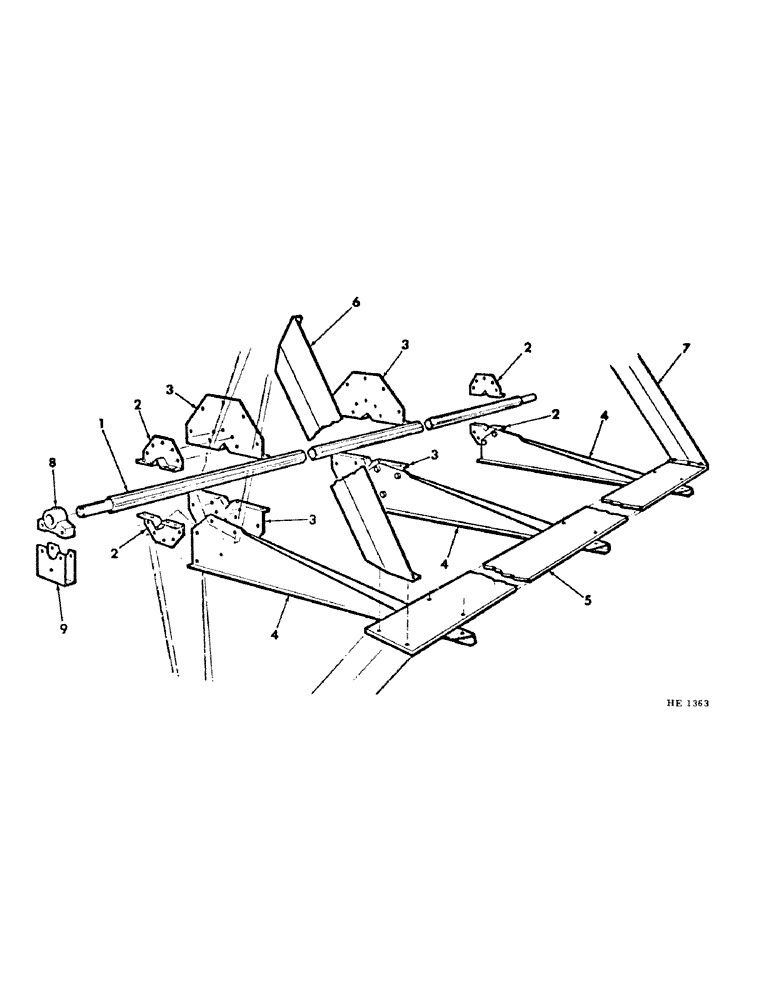

Запчасти Case IH 210 (Q-20) - PLATFORM, REEL AND REEL GUARD, SERIAL NUMBER 3700 AND SINCE Platforms

1

824849C1

REEL

TUBE, reel center 14-1/2 ft.

1шт.

1

824850C1

TUBE

reel center 16-1/2 ft.

1шт.

1

824851C1

TUBE

reel center 19-1/2 ft.

1шт.

22812R1

WASHER

1-15/32 x 2 x 16 ga

12шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

2

825762C1

SUPPORT

reel bat clamping end

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

824839C1

SUPPORT

reel bat clamping center

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

4

824838C1

SUPPORT

reel bat

20шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

30шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

5шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

20шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

5

609727R2

PULLEY

BAT, reel 14-1/2 ft.

5шт.

5

609928R2

BAT, reel 16-1/2 ft.

5шт.

5

593268R2

BAT, reel 19-1/2 ft.

5шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4" crg

30шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

10шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 ga

10шт.

120376

NUT,5/16"-18, G5

50шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

50шт.

6

612452R3

GUARD

reel end LH

5шт.

7

612453R3

REINFORCEMENT

GUARD, reel end RH (w Round Hole for identification)

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

20шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

40шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

20шт.

8

824537C1

BEARING CARRIER,1.46" ID x 2"

bat reel support

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

824538C1

SUPPORT

bat reel support bearing

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2"

3шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3" (LH)

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
