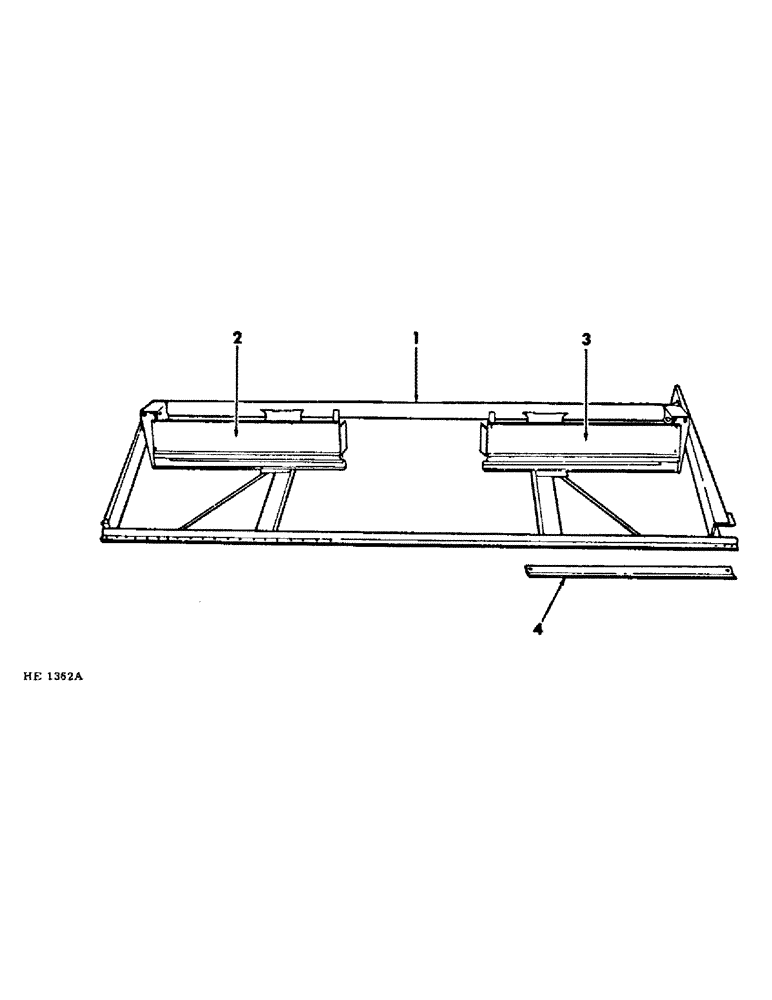

Запчасти Case IH 210 (Q-19) - PLATFORM, PLATFORM, SERIAL NUMBER 3700 AND SINCE Platforms

1

823121C1

FRAME, platform 14-1/2 ft.

1шт.

1

823053C1

FRAME, platform 16-1/2 ft.

1шт.

1

823054C1

FRAME, platform 19-1/2 ft.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

825680C2

SIDE, platform rear RH 14-1/2 ft.

1шт.

2

825682C2

SIDE, platform rear RH 16-1/2 ft.

1шт.

2

825684C1

SIDE, platform rear RH 19-1/2 ft.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

10шт.

106969R1

WASHER

11/32 x 1-1/4 x .054 ga

2шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

825679C2

SIDE, platform rear LH 14-1/2 ft.

1шт.

3

825681C2

SIDE, platform rear LH 16-1/2 ft.

1шт.

3

825683C1

SIDE, platform rear LH 19-1/2 ft.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

10шт.

106969R1

WASHER

11/32 x 1-1/4 x .054 ga

2шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

4

826292C1

SECTION, lower stoneguard reinforcement (To be welded)

3шт.
