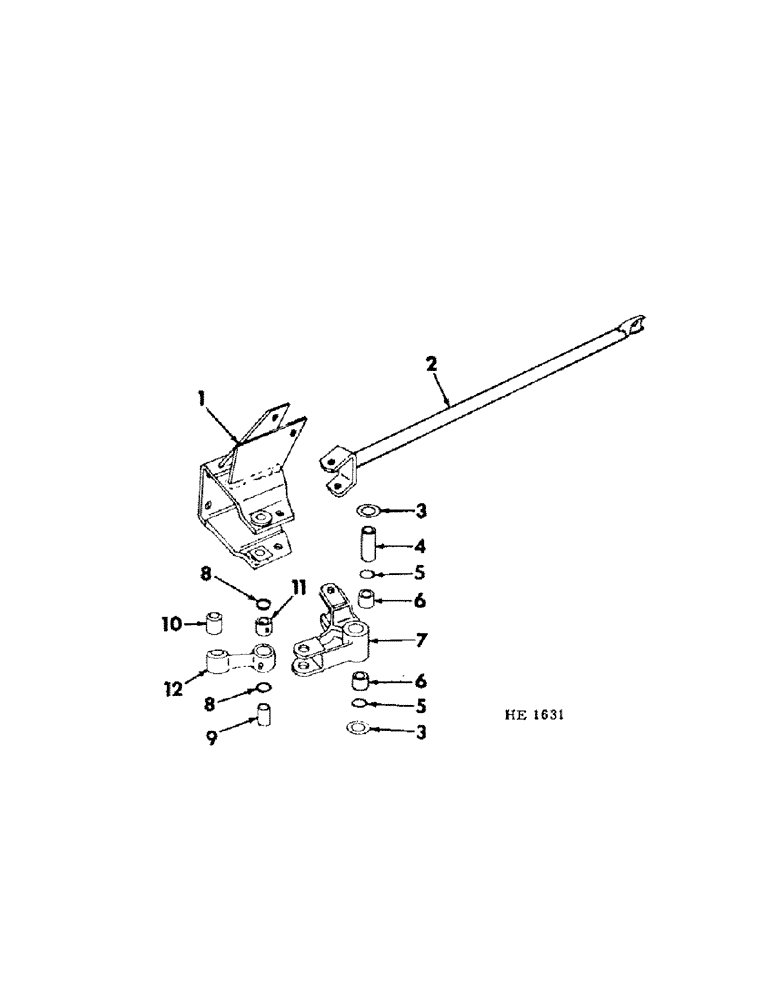

Запчасти Case IH 210 (Q-18) - PLATFORM, KNIFE BELLCRANK LINK AND BRACE, PRIOR TO SERIAL NUMBER 3700 Platforms

1

592151R92

BRACKET, bellcrank support

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2" crg

4шт.

20601R1

WASHER

17/32 x 1-1/4" x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

592157R11

BRACE, bellcrank support

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2"

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg

2шт.

271501

SOCKET

NUT, 7/16"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

21877R1

WASHER

1-5/32 x 2 x 22 ga

6шт.

4

608734R1

BUSHING

bellcrank pivot

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2"

1шт.

21877R1

WASHER

1-5/32 x 2 x 22 ga

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

564808R91

WIPER

OIL SEAL, bellcrank stud

2шт.

6

142929H

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 25.4mm W

BEARING, bellcrank

2шт.

7

572982R11

LEVER

BELLCRANK ASSY, knife drive (Includes 2-142929H, BEARINGS)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

697494R91

OIL SEAL

OIL SEAL, bellcrank link 574238R91, OIL SEAL)

2шт.

9

565627R1

BUSHING

SLEEVE, link pivot

1шт.

10

560388R91

COMPOSITE RING

BUSHING, bellcrank link RH

1шт.

11

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

bellcrank link LH

1шт.

12

593248R11

PIVOT

LINK ASSY, bellcrank (Includes 1-560388R91 & 1-565628R1 BUSHINGS)

1шт.

16964R91

FITTING

1/4 - NF 90deg. lub

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
