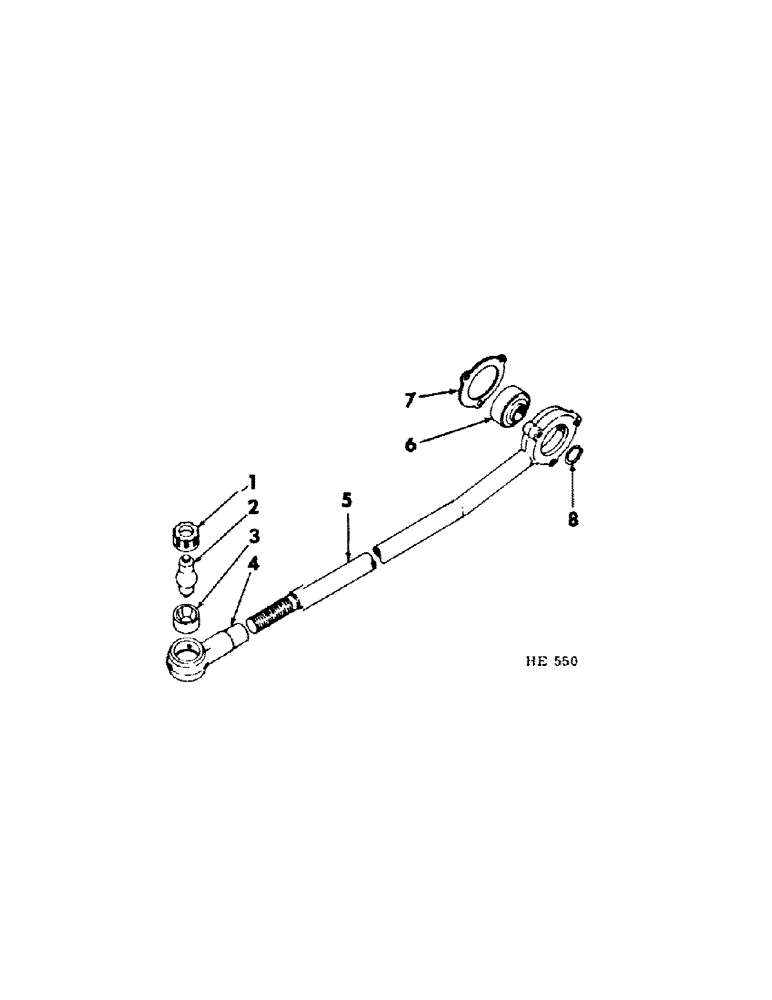

Запчасти Case IH 210 (Q-18[A]) - PLATFORM, KNIFE DRIVE PITMAN, PRIOR TO SERIAL NUMBER 3700 Platforms

1

572980R1

SEAT

pitman drive ball upper

1шт.

2

572979R1

JOINT TURNING

BALL, knife drive

1шт.

24191R1

BOLT, 1/2 x 4" Type 8

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

572981R1

SEAT

pitman drive ball lower

1шт.

4

572976R1

END

HOUSING, pitman ball

1шт.

16964R91

FITTING

1/4" - 90deg. lub

1шт.

106837

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

SCREW, 5/16 x 3/4" sq-hd dog-pt set

1шт.

NLS

NO LONGER SERVICED

5/16" jam

1шт.

5

592150R41

PITMAN

knife

1шт.

NLS

NO LONGER SERVICED

7/8 - NF jam

1шт.

6

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

knife pitman (opt w/584148R91 BEARING)

1шт.

6

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, knife pitman (opt w/608697R91 BEARING)

1шт.

7

572139R1

RETAINER

pitman bearing

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

8

26540D

RING, SNAP

RING, pitman brg retaining

1шт.
