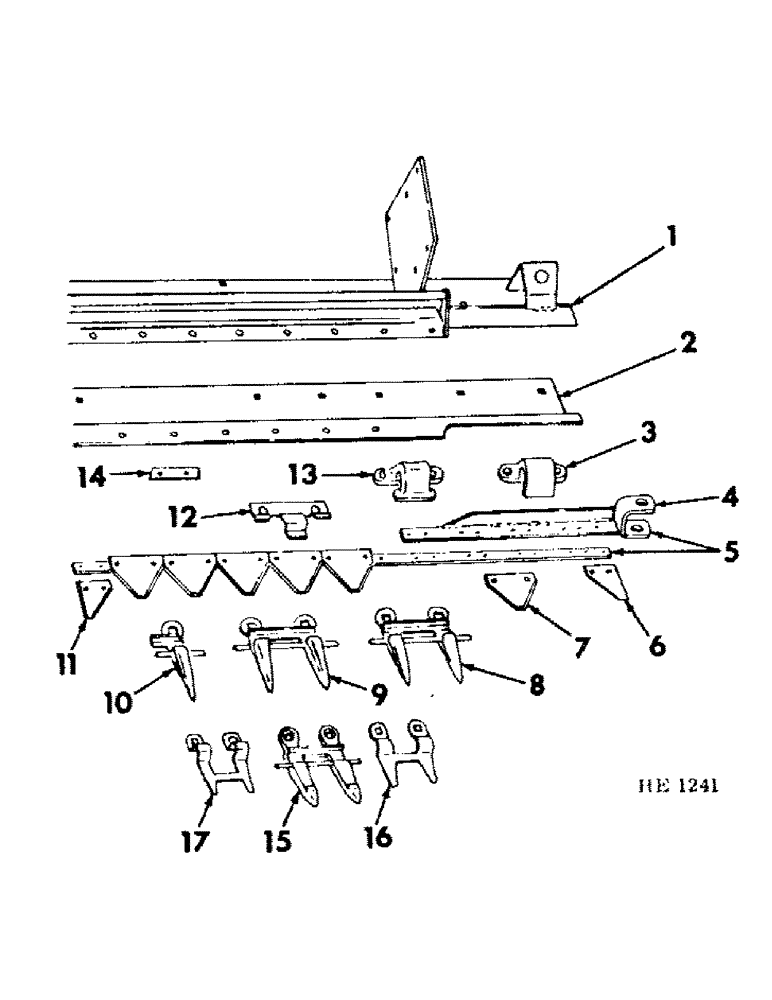

Запчасти Case IH 210 (Q-16) - PLATFORM, KNIFE, PRIOR TO SERIAL NUMBER 3700 Platforms

1

593205R11

GUARD, stone upper (10-1/2 ft)

1шт.

1

593206R11

GUARD, stone upper (13-1/2 ft)

1шт.

1

594167R11

GUARD, stone upper (16-1/2 ft)

1шт.

1

593208R11

GUARD, stone upper (10-1/2 ft)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

593211R1

GUARD, stone lower (10-1/2 ft)

1шт.

2

593212R1

GUARD, stone lower (13-1/2 ft)

1шт.

2

594168R1

GUARD, stone lower (16-1/2 ft)

1шт.

2

593214R1

GUARD, stone lower (19-1/2 ft)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg (4-13-1/2 ft, 10-16-1/2 ft, 12-19-1/2 ft)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

5шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

3

592163R1

GUIDE

hold down hight arch

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 No. 3 plow

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

4

593253R92

KNIFE

END, knife

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

No. 5-1/2 x 1-1/8" ov-hd

13шт.

5

599736R91

KNIFE

10-1/2 ft chrome-pltd underserrated (Heavy) composed of (1) end 593253R92, (1) back (NSS), (1) section 599733R1, (1) section 595658R1, (40) section 457607R1, (13) rivet 14773R1, (71) rivet 19869R1

1шт.

5

593250R92

KNIFE

13-1/2 ft chrome-pltd underserrated (Light) composed of (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (52) section 457606R1, (13) rivet 14773R1, (95) 19869R1

1шт.

5

593251R92

KNIFE ASSY

KNIFE, 16-1/2 ft chrome-pltd underserrated (Light) composed of (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (64) section 457606R1, (13) rivet 14773R1, (119) rivet 19869R1

1шт.

5

593252R92

KNIFE, 19-1/2 ft chrome-pltd underserrated (Light) composed of (1) end 593253R92, (1) back (NSS), (1) section 619077R1, (1) section 619078R1, (76) section 457606R1, (13) rivet 14773R1, (143) rivet 19869R1

1шт.

5

599613R91

KNIFE, 13-1/2 ft chrome-pltd serrated (For Cutting Flax) composed of: (1) end 593253R92, (1) back (NSS), (1) section 599617R1, (1) section 599618R1, (52) section 599616R1, (13) rivet 14773R1, (95) 19869R1

1шт.

5

599614R91

KNIFE, 16-1/2 ft chrome-pltd serrated (For Cutting Flax) composed of: (1) end 593253R92, (1) back (NSS), (1) section 599617R1, (1) section 599618R1, (64) section 599616R1, (13) rivet 14773R1, (119) rivet 19869R1

1шт.

5

599615R91

KNIFE, 19-1/2 ft chrome-pltd serrated (For Cutting Flax) composed of: (1) end 593253R92, (1) back, (1) section 599617R1, (1) section 599618R1, (76) section 599616R1, (13) rivet 14773R1, (143) rivet 19869R1

1шт.

6

599733R1

CUTTER BAR

SECTION, smooth cr-pltd (LH) (10-1/2 ft (Heavy)

1шт.

6

619077R1

KNIFE SECTION

SECTION, smooth cr-pltd (LH) (13-1/2 ft, 16-1/2 ft & 19-1/2 ft.) (Light)

1шт.

6

599617R1

KNIFE SECTION

SECTION, smooth cr-pltd (LH) (13-1/2 ft, 16-1/2 ft & 19-1/2 ft) (Flax)

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

No. 5 1/2 x 1-1/8 ov-hd

2шт.

7

457607R1

KNIFE SECTION

SECTION, cr-pltd underserrated (40 - 10-1/2 ft) (Heavy)

1шт.

7

457606R1

KNIFE SECTION

SECTION, cr-pltd underserrated (52 - 13-1/2 ft, 76 - 19-1/2 ft) (Light)

1шт.

7

599616R1

KNIFE SECTION

SECTION, cr-pltd overserrated (52 - 13-1/2 ft, 64 - 16-1/2 ft, 76 - 19-1/2 ft) (Flax)

1шт.

14773R1

RIVET,Oval Hd, .211" x 1 1/8""

No. 5 1/2 x 1-1/8" ov hd

13шт.

19869R1

RIVET, No. 5 1/2 x 9/16" ov hd (71 - 10-1/2 ft, 95 - 13-1/2 ft, 119 - 16-1/2 ft, 143 - 19-1/2 ft.) Oval Hd, .211" x 9/16"

1шт.

8

613839R1

GUARD

double LH

3шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" No. 3 plow

6шт.

271501

SOCKET

NUT, 7/16"

6шт.

9

613838R1

GUARD

double (17 - 10-1/2 ft, 23 - 13-1/2 ft, 29 - 16-1/2 ft, 35 - 19-1/2 ft)

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16" No. 3 plow (21 - 10-1/2 ft, 27 - 13-1/2 ft, 33 - 16-1/2 ft, 39 - 19-1/2 ft)

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32" No. 3 plow

4шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" No. 3 plow, 16-10-1/2 ft, 22 - 13-1/2 ft, 32 - 16-1/2 ft, 38 - 19-1/2 ft)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" (1 per Bolt)

1шт.

10

613840R1

GUARD

single (RH) (opt w/613841R1, GUARD)

1шт.

10

613841R1

GUARD

single (LH) (opt w/613840R1, GUARD)

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16" No. 3 plow

1шт.

271501

SOCKET

NUT, 7/16"

1шт.

11

595658R1

KNIFE SECTION

SECTION, smooth cr-pltd half (RH) (10-1/2 ft) (Heavy)

1шт.

11

619078R1

KNIFE

SECTION, smooth cr-pltd half (RH) (13-1/2 ft, 16-1/2 ft & 19-1/2 ft) (Light)

1шт.

599618R1

KNIFE SECTION

SECTION, smooth cr-pltd half (RH) (13-1/2 ft, 16-1/2 ft, & 19-1/2 ft) (Flax)

1шт.

19869R1

RIVET, No. 5 1/2 x 9/16" ov-hd Oval Hd, .211" x 9/16"

2шт.

12

613842R2

GUIDE

CLIP, hold down knife (8 - 10-1/2 ft, 11-13-1/2 ft, 14 - 16-1/2 ft, 17 - 19-1/2 ft.)

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 No. 3 plow (2 per clip)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" (1 per Bolt)

1шт.

13

613843R1

HOLDER

CLIP, hold down knife

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32 No. 3 plow

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

14

595213R1

STRIP

SHIM, guide

1шт.

15

823025C2

GUARD

tie (For use in stony ground conditions) (20 - 10-1/2 ft., 25 - 13-1/2 ft., 32 - 16-1/2 ft., 38 - 19-1/2 ft.)

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2" crg (For use w/guards, having square mounting holes) (40 - 10-1/2ft., 52 - 13-1/2 ft., 64 - 16-1/2 ft., 76 - 19-1/2 ft.)

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2" (For use w/guards having round mounting holes) (40 - 10-1/2 ft., 52 - 13-1/2 ft., 64 - 16-1/2 ft., 76 - 19-1/2 ft.)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" (1 per Bolt)

1шт.

16

823026C1

PLATE

guard tie (For use in stony ground conditions) (19 - 10-1/2 ft., 25 - 14-1/2 ft., 31 - 16-1/2 ft., 37 - 19-1/2 ft.)

1шт.

17

823027C1

PLATE, guard high arch tie (For use in stony ground conditions)

1шт.
