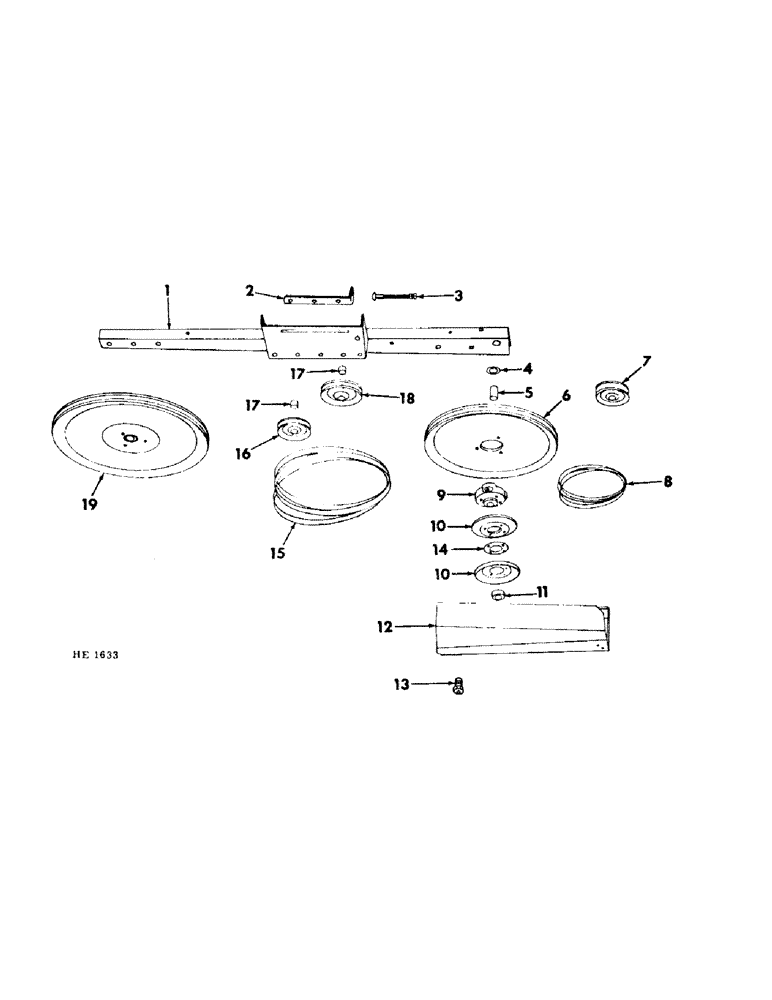

Запчасти Case IH 210 (Q-15) - PLATFORM, REEL DRIVE, BELT TYPE, PRIOR TO SERIAL NUMBER 3700 Platforms

1

ARM, reel support (For service refer to "REEL SUPPORT ARM")

1шт.

2

609917R1

SUPPORT, reel drive idler pulley

1шт.

3

609778R1

BOLT, idler pulley special tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

1шт.

5

617363R1

BUSHING

reel drive hub

1шт.

6

597737R1

PULLEY, reel jackshaft drive

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

559292R93

PULLEY

jackshaft belt tightener

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2 x 2-1/4" crg

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq-hole x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

597736R1

V-BELT,0.63" W x 80.00" L

Reel jackshaft drive 0.63" W x 80.00" L

1шт.

9

597739R11

HUB W/BUSHING ASSY, reel drive (Includes 1-617363R1 BUSHING)

1шт.

10

592730R1

PULLEY

reel drive half

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

610513R1

COLLAR

COLLAR, pulley locking

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1-1/2" sq-hd-cup-pt set

1шт.

12

597742R1

SHIELD, reel drive

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4"

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

592084R3

BOLT,1/2" - 13 x 1", Drilled

pivot shaft lubrication

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

21659K

RING

SPACER, reel drive pulley

6шт.

15

823819C1

BELT

reel pulley drive

1шт.

16

559292R93

PULLEY

idler lower tightener

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2"

1шт.

374119R1

WASHER, 17/32 x 1 x 1/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

43851D

SPACER, idler pulley

2шт.

18

559087R92

PULLEY

idler upper tightener

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2"

1шт.

374119R1

WASHER, 17/32 x 1 x 1/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

597740R1

PULLEY, reel drive

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.
