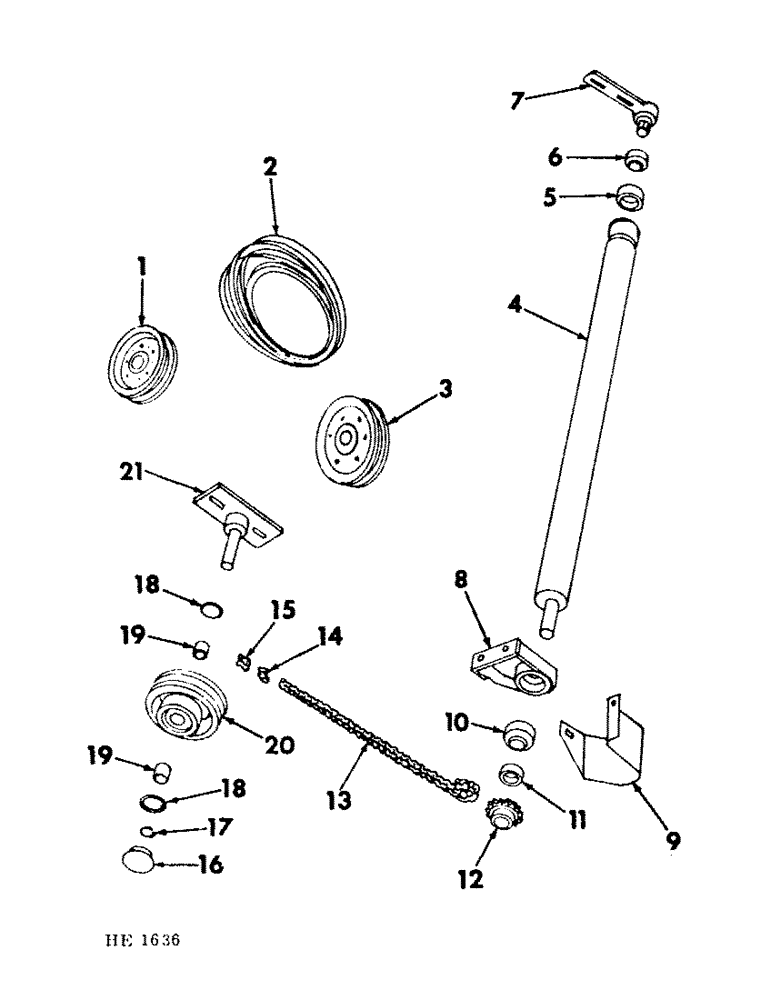

Запчасти Case IH 210 (Q-12) - PLATFORM, PLATFORM DRIVE ROLLER, PRIOR TO SERIAL NUMBER 3700 Platforms

1

559292R93

PULLEY

belt tightener lower

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2" crg

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq-hole x 1-1/4 x 11 ga

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

592128R1

V-BELT,0.63" W x 78.08" L

Drive roller drive 0.63" W x 78.08" L

2шт.

3

559087R92

PULLEY

belt tightener upper

2шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2 x 2-1/4" crg

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq hole x 1-1/4 x 11 ga

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

592137R91

ROLLER

platform drive

2шт.

5

592142R1

RETAINER

front brg rubber

2шт.

6

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

drive roller front (opt w/508639R91, BEARING)

2шт.

6

598639R91

BEARING, drive roller front (opt w/592141R91, BEARING)

2шт.

7

592139R11

SUPPORT

roller front bearing

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

592143R1

HOUSING, rear brg LH Shown

1шт.

8

592144R1

HOUSING

rear brg RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

592145R1

REINFORCEMENT, housing shield LH Shown

1шт.

9

592146R1

REINFORCEMENT, housing shield RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

4шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4" slt rd-hd

2шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

counter shaft

2шт.

11

455102R11

COLLAR

W/SCREW, brg locking (Includes 1-102569, SCREW)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

12

607674R1

SPROCKET ASSY.

SPROCKET, 14T drive roller drive

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

13

CHAIN, 1/2" agricultural roller chain roller drive (For service order 1-1790D 10 ft length of chain, reduce to 41 links and add 1-1303D offset link and 1-1301D connecting link)

1шт.

14

1303D

LINK

chain offset

2шт.

15

1301D

CHAIN LINK

LINK, chain connecting

2шт.

16

663908R1

CAP

sprocket covering

2шт.

17

269181R1

SNAP RING,#75, Ext

Ring, Snap, , front PTO shaft, pulley #75, Ext

2шт.

18

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

4шт.

19

592135R1

BUSHING

lower drive pulley

4шт.

20

592132R91

PULLEY AND SPROCKET ASSY, lower drive (Includes 2-592135R1 BUSHING)

2шт.

110146

FITTING, 1/4" lub

2шт.

21

592129R91

BRACKET, lower drive pulley

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
