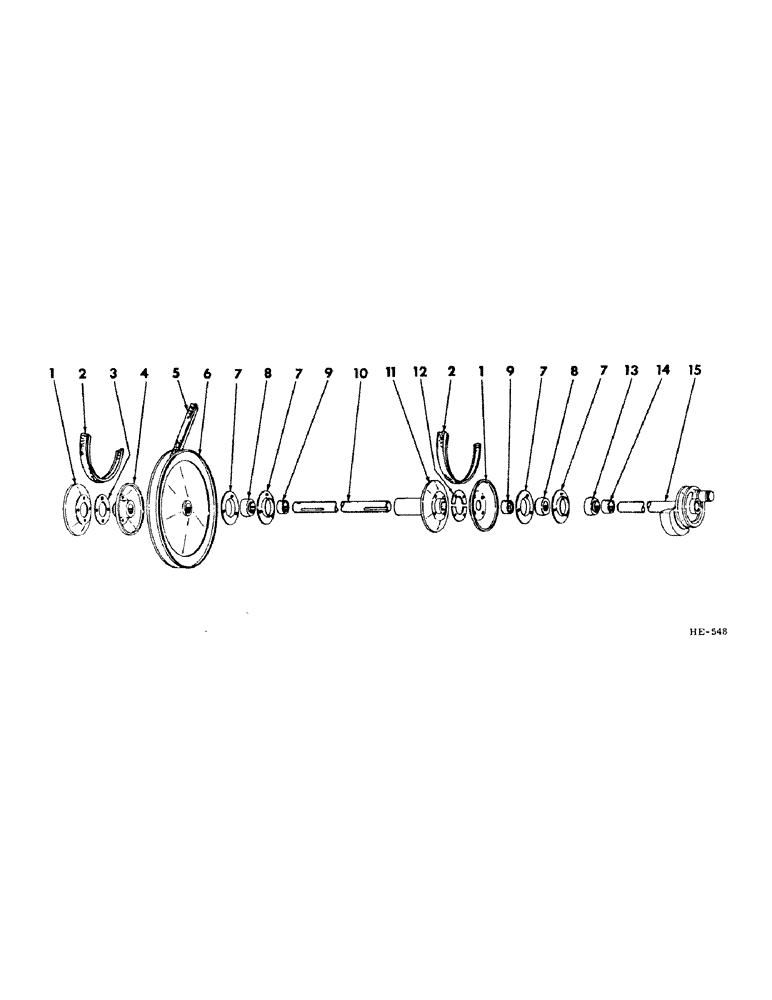

Запчасти Case IH 210 (Q-11) - PLATFORM, PLATFORM DRIVE COUNTERSHAFT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

592730R1

PULLEY

roller drive half

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

592128R1

V-BELT,0.63" W x 78.08" L

Drive roller drive 0.63" W x 78.08" L

2шт.

3

21659K

RING

SPACER, roller drive pulley

6шт.

4

597716R1

PULLEY, roller drive RH

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

5

591878R1

V-BELT,0.88" W x 139.40" L

Platform drive 0.88" W x 139.40" L

1шт.

6

597718R1

PULLEY, platform drive

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib-hd

1шт.

7

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, main drive & knife flywheel shaft bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

617668R91

BALL BEARING

main drive & knife flywheel shaft

2шт.

9

557995R11

COLLAR

W/SCREW, bearing locking (Includes 1-115321 SCREW)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" cup-pt set

2шт.

10

597715R1

SHAFT, main drive

1шт.

11

597722R1

PULLEY

platform roller drive LH

1шт.

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2" tapered gib-hd

2шт.

12

592127R1

SPACER

platform roller drive (LH)

12шт.

13

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel shaft LH

1шт.

14

455104R11

COLLAR

W/SCREW, flywheel shaft (LH) (Includes 1-102592 SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

1шт.

15

597724R2

SHAFT

10-1/2 ft. platform knife flywheel

1шт.

15

597725R2

SHAFT, 13-1/2 ft. platform knife flywheel

1шт.

15

597726R2

SHAFT, 16-1/2 ft. platform knife flywheel

1шт.

15

597727R2

SHAFT, 19-1/2 ft. platform knife flywheel

1шт.
