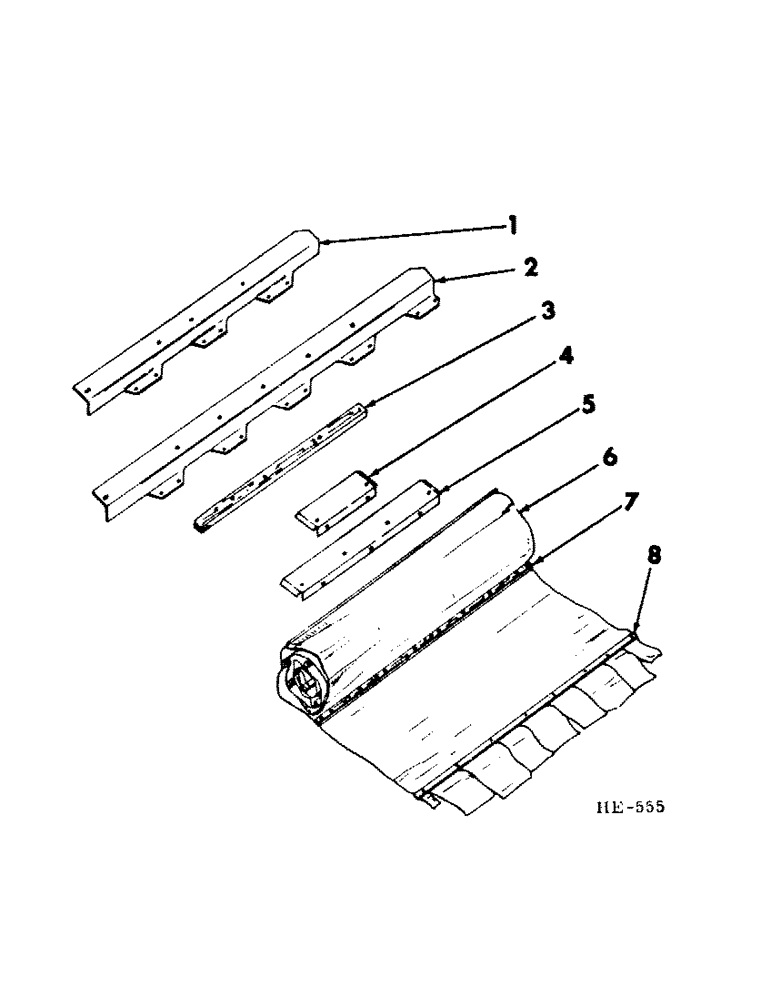

Запчасти Case IH 210 (Q-09) - PLATFORM, SELF CLEANING NARROW APRON, PRIOR TO SERIAL NUMBER 3700 Platforms

1

593270R1

GUARD

SHIELD, apron front LH (10-1/2 ft)

1шт.

1

593271R1

GUARD

SHIELD, apron front RH Shown (10-1/2 ft)

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" sltd

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

6шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

594380R1

SHIELD, apron front (LH) (13-1/2 ft)

1шт.

2

594381R1

SHIELD, apron front (RH Shown) (13-1/2 ft)

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" rd-hd sltd

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

10шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

609938R1

RUNNER

apron guide (10-1/2 ft Shown)

2шт.

3

594379R1

RUNNER, apron guide (13-1/2 ft)

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

609933R1

SUPPORT, canvas apron (10-1/2 ft)

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

594378R1

SUPPORT, canvas apron (13-1/2 ft)

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

597125R93

APRON, canvas 10-1/2 ft (Includes 609955R11, CONNECTING BAR, 609954R2, SLATS, 451312R1 STAPLES, Q3569 & 20319R1 RIVETS)

2шт.

6

597127R94

APRON

canvas 13-1/2 ft (Includes 609955R11 CONNECTING BAR, 609954R2 SLATS, 451312R1 STAPLES, Q3569 & 20319R1 RIVETS)

2шт.

7

609954R3

SLAT

apron

1шт.

451312R1

STAPLE

S, double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16" cop tub

1шт.

20319R1

RIVET

.186 x 1/2" cop tub

1шт.

8

609955R11

BAR

connecting (Includes 132926 SCREW, 120614 NUT & 120217 lk- WASHER)

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10 x 1-1/4" C-Z rd-hd sltd

18шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

18шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

18шт.
