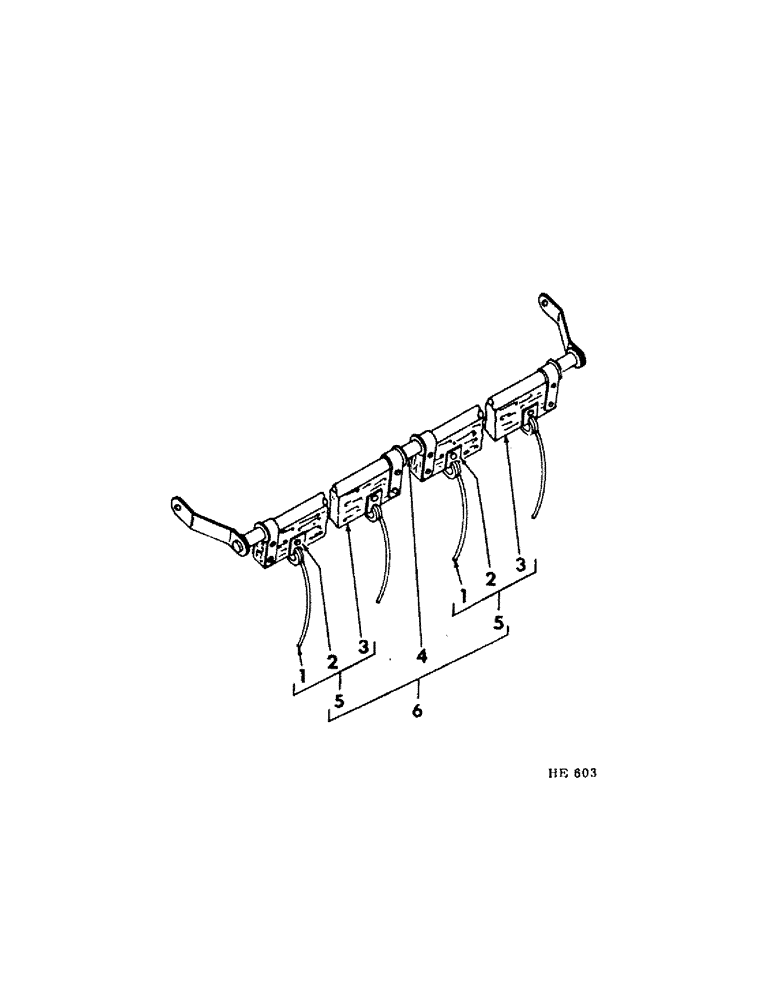

Запчасти Case IH 210 (Q-08) - PLATFORM, PICK-UP REEL BAT, 10-1/2 FT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

598171R1

TINE,Coiled, 1 Prong, 283mm L

reel bar

120шт.

2

592616R1

CLIP

reel bat tine

120шт.

20901R1

RIVET

3/16 x 1" semi-tube ov-hd

120шт.

3

BAT, clip, tine & wood (For service order 1-598196R91 BAT ASSY) (NSS)

10шт.

4

592613R91

BAT SHAFT, reel bat

5шт.

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

5

598196R91

BAT

ASSY, composed of: (1) bat, (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

10шт.

6

598195R91

BATSHAFT AND BAT ASSY, composed of: (1) shaft 592613R91, (2) bat assy 598196R91

5шт.
