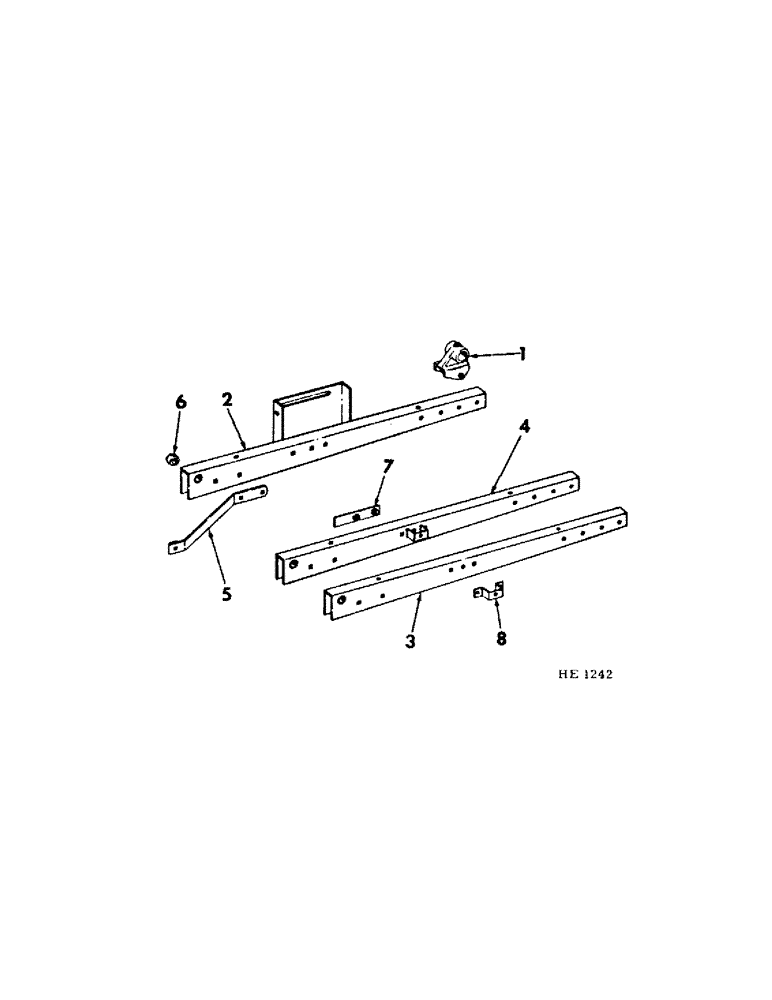

Запчасти Case IH 210 (Q-08[A]) - PLATFORM, REEL SUPPORT ARM, PRIOR TO SERIAL NUMBER 3700 Platforms

1

611761R1

BRACKET, reel tube bearing (one used pick-up reel) (Two used bat reel)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

2шт.

LC175

PIN

1/2 x 2-1/2" std-hd-dld

2шт.

2

591724R92

ARM, reel support LH

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

1шт.

3

ARM, reel support RH (For service order 1-825238C2, ARM; 1-825283C1, BAR; 2-180122, BOLT and 2-120382, WASHER)

1шт.

4

825238C2

ARM, reel support RH

1шт.

5

607637R2

BRACE, reel support arm

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg (For use w/Item 3) (RH)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" (For use w/Item 4) (RH)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" (LH)

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

(For use w/495967R1, bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

6

610513R1

COLLAR

COLLAR, support arm locking

2шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2" cup-pt set

2шт.

7

825283C1

BAR, reel arm brace (For use w/825238C2, ARM)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

591743R1

CLAMP, cylinder extension upper (For use on reel arm RH w/o welded cyl mounting bracket)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
