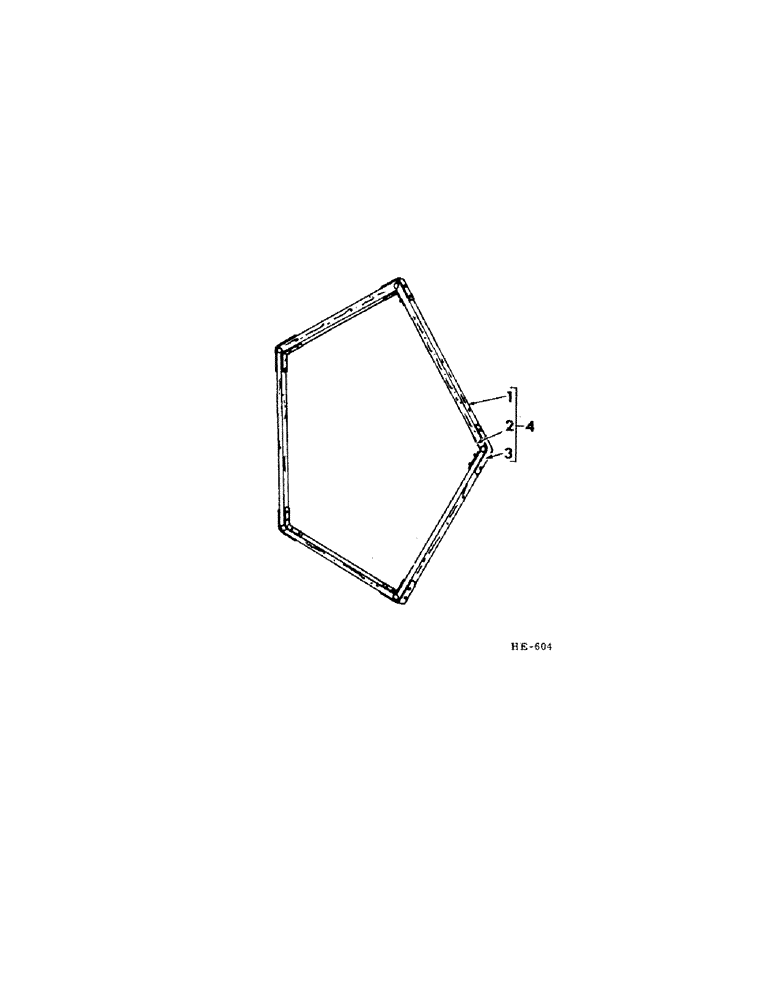

Запчасти Case IH 210 (Q-07) - PLATFORM, PICK-UP REEL POLYGON LEFT HAND, 10-1/2 FT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

598173R1

BOARD

STICK, polygon

5шт.

2

598175R1

STRAP, polygon inner (LH)

4шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

20шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

3

598174R1

STRAP, polygon outer

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

20шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

4

598172R91

POLYGON ASSY, reel plain LH composed of: (20) bolt 180042, (20) washer 120380, (20) nut 378531R1, (5) stick 598173R1, (5) strap 598174R1, (5) strap 598175R1

1шт.
