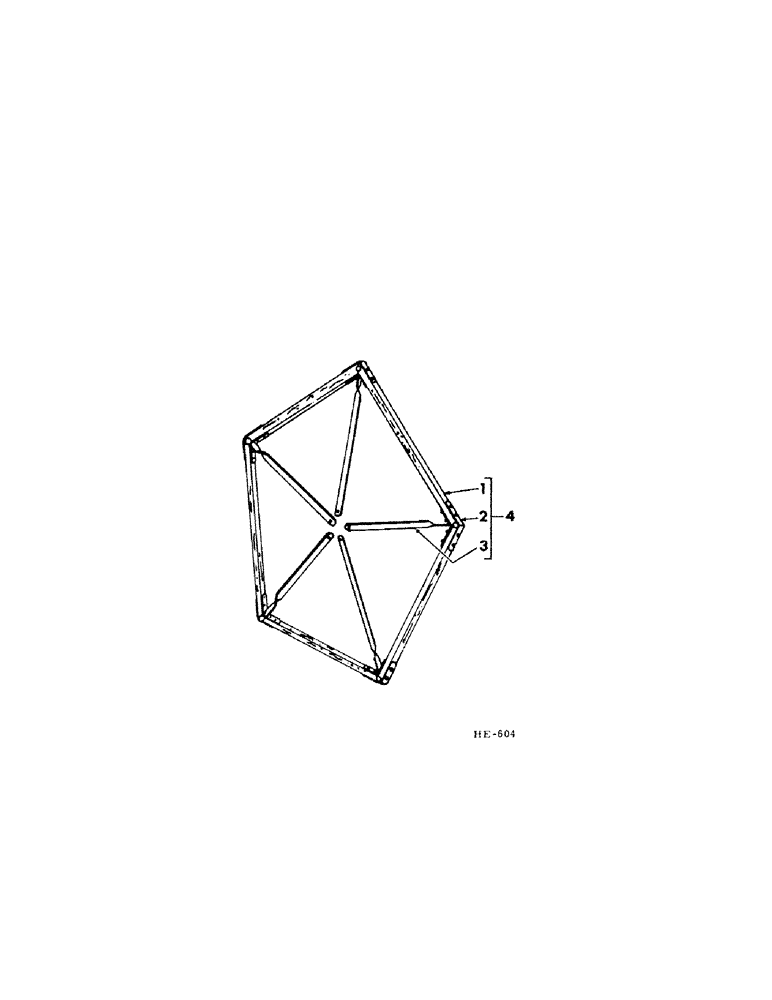

Запчасти Case IH 210 (Q-07[A]) - PLATFORM, PICK-UP REEL POLYGON RIGHT HAND, 10-1/2 FT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

598173R1

BOARD

STICK, polygon

5шт.

2

598174R1

STRAP, polygon outer

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

20шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

3

598177R1

SUPPORT

SPOKE, polygon (RH)

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

20шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

5шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

20шт.

472146R1

LOCK NUT,5/16"-18, GB

LK-NUT, 5/16"

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

598176R91

POLYGON ASSY, reel spoke RH composed of: (2) bolt 180042, (20) washer 120380, (2) nut 378531R1, (5) bolt 598802R1, (5) washer 120214, 95) nut 472146R1, 95) spoke 598177R1, (5) strap 598174R1, (5) stick 598173R1

1шт.
