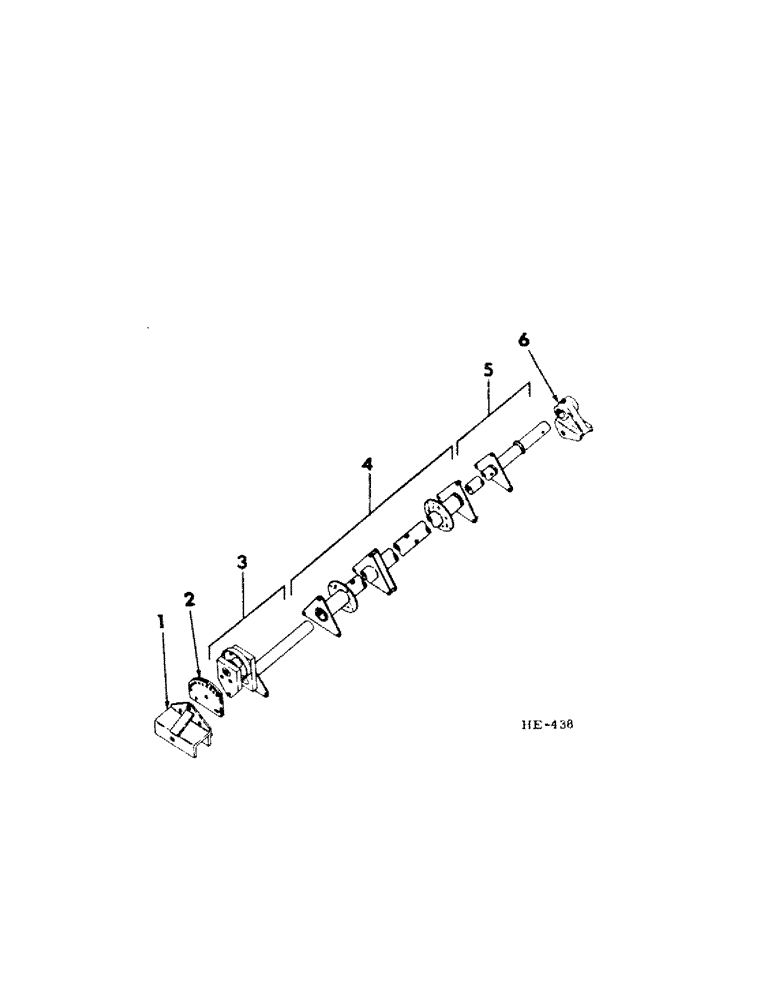

Запчасти Case IH 210 (Q-06[A]) - PLATFORM, PICK-UP REEL SHAFT, 10-1/2 FT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

592605R91

BRACKET, eccentric adjustment plated (connects to reel arm lift)

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/2"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4"

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

1шт.

271501

SOCKET

NUT, 7/16"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

592604R11

PLATE, eccentric crank adjustment

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

598162R91

CRANK, eccentric drive (Includes 109461 & 273355 FITTINGS)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" lub

1шт.

4

592599R91

SHAFT, reel center (Includes 102593 SCREWS & 1-273355 FITTING)

1шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

SCREW, 3/8 x 1/2" hdls cup-set set

3шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" lub

1шт.

5

592598R91

SHAFT, driving end

1шт.

6

611761R1

BRACKET, reel drive shaft

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

599744R1

AXLE PIN

C-PIN, quick-attachable

1шт.

LC175

PIN

1/2 x 2-1/2" std-hd dld

1шт.
