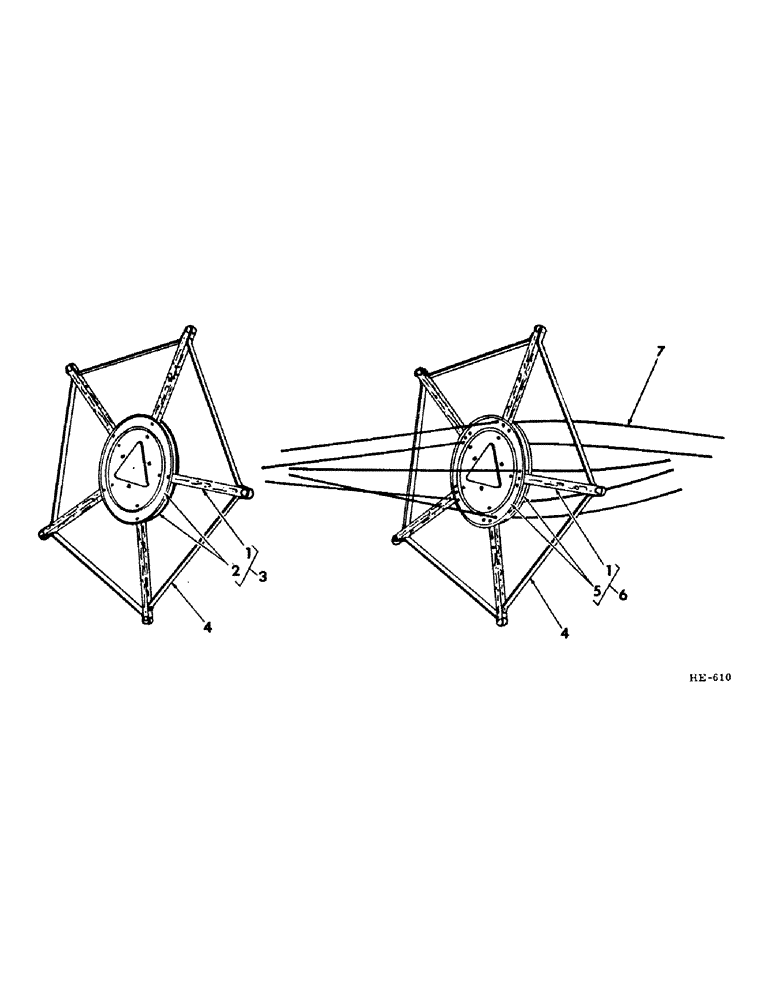

Запчасти Case IH 210 (Q-05) - PLATFORM, PICK-UP REEL SPIDERS AND BRACES, 10-1/2 FT, PRIOR TO SERIAL NUMBER 3700 Platforms

1

592610R11

BOARD

STICK, reel arm

15шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" Type 1 crg

30шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" (1 per Bolt)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per Bolt) 1/4"

1шт.

2

598166R1

PLATE, outer spider

4шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

6шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

598165R91

SPIDER ASSY, reel arm outer composed of: (10) bolt 18629R1, (10) nut 378531R1, (10) washer 120380, (2) plate 598166R1, (5) stick 592610R11

2шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4" Type 1 crg

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

6шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

598167R1

BRACE, reel arm

15шт.

598806R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

BOLT, 5/16 x 1-3/4" crg (1 per Brace)

1шт.

472146R1

LOCK NUT,5/16"-18, GB

LK-NUT, 5/16" (1 per Bolt)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

5

598164R1

PLATE, inner spider

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4 crg

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

3шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

598163R91

SPIDER ASSY, reel arm inner composed of: (10) bolt 18629R1, (10) nut 378531R1, (1) washer 120380, (2) plate 598164R1, (5) stick 592610R11

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

3шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

592600R1

ROD, truss

5шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga

10шт.

592601R1

WASHER, Truss rod rubber

10шт.

592602R1

WASHER, Truss rod cup

10шт.

120369

NUT,3/8"-24, G5

20шт.
