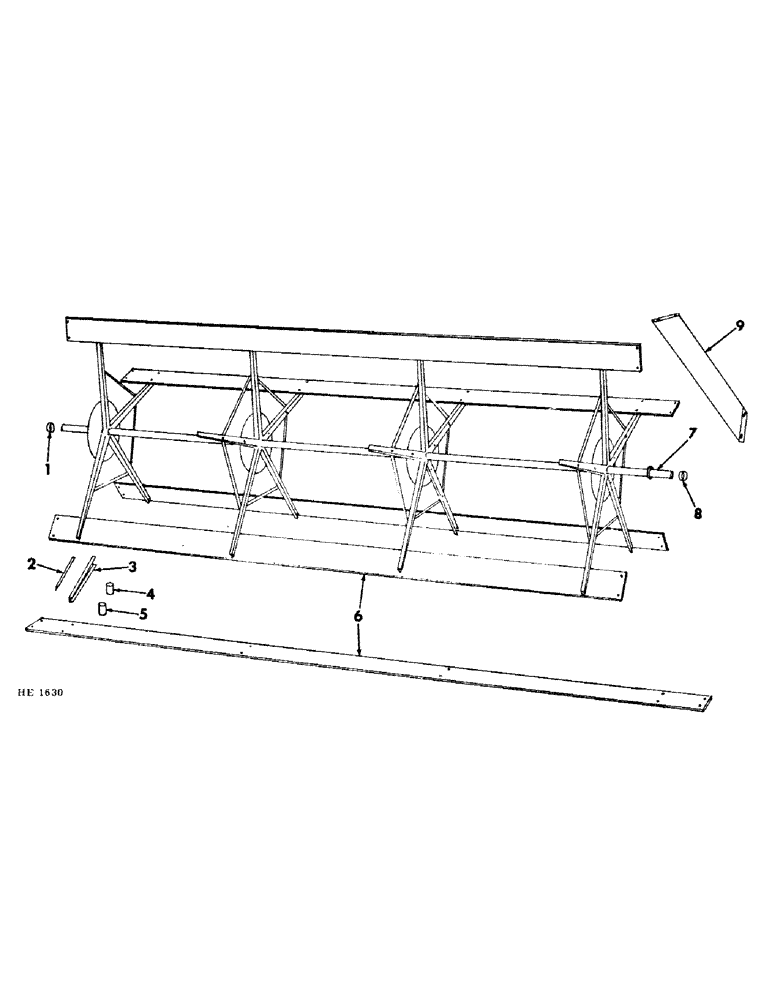

Запчасти Case IH 210 (Q-04) - PLATFORM, REEL AND REEL GUARD, PRIOR TO SERIAL NUMBER 3700 Platforms

1

612267R1

COLLAR

reel tube locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

4шт.

2

618854R1

BRACE, reel bat bracket (15 use 10-1/2 ft) (20 use 13-1/2 ft , 16-1/2 ft & 19-1/2 ft)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" (15-10-1/2 ft, 20-13-1/2 ft, 16-1/2 ft & 19- 1/2 ft)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

612262R1

ASSEMBLY

ARM, reel bat (15 use 10-1/2 ft) (20 use 13-1/2 ft 16-1/2 ft & 19-1/2 ft)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" (15-10-1/2 ft, 20-13-1/2 ft, 16-1/2 & 19-1/2 ft)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4" (15-10-1/2 ft 20-13-1/2 ft, 16-1/2 & 19-1/2 ft)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

U13039

SPACER

bat bracket inner (5 used 10-1/2 ft) (10 use 13-1/2 ft, 16-1/2 ft & 19-1/2 ft)

1шт.

5

588736R1

SPACER

bat bracket outer (15 used 10-1/2 ft) (20 used 13-1/2 ft, 16-1/2 ft & 19-1/2 ft)

1шт.

6

609925R2

BAT, 10-1/2 ft reel

5шт.

6

593267R2

BAT, 13-1/2 ft reel

5шт.

6

609928R2

BAT, 16-1/2 ft reel

5шт.

6

593268R2

BAT, 19-1/2 ft reel

5шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

10шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4" (15 used 10-1/2 ft) (20 used 13-1/2 ft, 16- 1/2 ft & 19-1/2 ft)

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16 x 2-1/2" (5 used 10-1/2 ft) (10 used 13-1/2 ft 16- 1/2 ft & 19-1/2 ft)

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga (30 used 10-1/2 ft) (40 used 13-1/2 ft, 16-1/2 ft, & 19-1/2 ft)

1шт.

7

612272R92

TUBE, 10-1/2 ft reel 125.375" Length

1шт.

7

593263R91

TUBE, 13-1/2 ft reel

1шт.

7

612275R92

TUBE, 16-1/2 ft reel 197.375" Length

1шт.

7

593264R92

TUBE, 19-1/2 ft reel

1шт.

8

615325R1

WASHER, 1-11/16 x 2-1/4 x 16 ga LH

2шт.

9

612452R3

GUARD

reel end (LH)

5шт.

9

612453R3

REINFORCEMENT

GUARD, reel end (RH) (w/Round hole for identification)

5шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

20шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

40шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

20шт.
