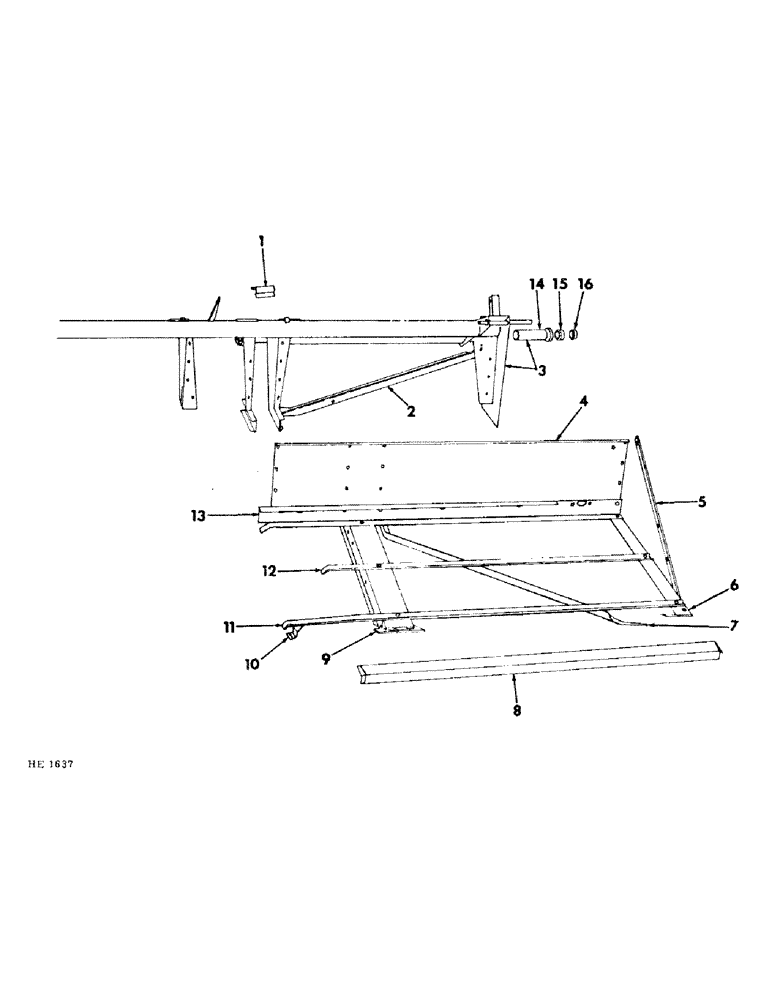

Запчасти Case IH 210 (Q-02) - PLATFORM, PLATFORM, PRIOR TO SERIAL NUMBER 3700 Platforms

1

594187R1

CLAMP

upper pivot

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2"

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

592093R11

BRACE, rear diagnonal (LH Shown) (16-1/2 ft. & 19-1/2 ft)

1шт.

2

592094R11

BRACE, rear diagnonal (RH) 16-1/2 ft & 19-1/2 ft)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 3/8 x 1-1/2"

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

597711R1

FRAME, (10-1/2 ft)

1шт.

3

597712R1

FRAME, (13-1/2 ft)

1шт.

3

597713R1

FRAME, (16-1/2 ft)

1шт.

4

597714R1

FRAME, (19-1/2 FT)

1шт.

4

593233R1

SIDE, platform rear (LH Shown) (10-1/2 ft)

1шт.

4

593234R1

SIDE, platform rear (RH) (10-1/2 ft)

1шт.

4

593235R1

SIDE, platform rear (LH) (13-1/2 ft)

1шт.

4

593236R1

SIDE, platform rear (RH) (13-1/2 ft)

1шт.

4

592114R1

SIDE, platform rear (LH) (16-1/2 ft)

1шт.

4

592115R1

SIDE, platform rear (RH) (16-1/2 ft)

1шт.

4

593237R1

SIDE, platform rear (LH) (19-1/2 ft)

1шт.

4

593238R1

SIDE, platform rear (RH) (19-1/2 ft)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

22шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (19-1/2 ft)

2шт.

120376

NUT,5/16"-18, G5

22шт.

120377

NUT,3/8" - 16, Gr 5

(19-1/2 ft) 3/8"-16, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (19-1/2 ft) 3/8"

2шт.

5

592092R1

BAR, outer diagonal tie

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4" (RH)

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2" (LH)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

592087R11

SUPPORT, outer LH Shown

1шт.

592088R12

SUPPORT, outer RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

BOLT, 7/16 x 7/8"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271501

SOCKET

NUT, 7/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

592097R11

SUPPORT, platform lower diagonal (LH Shown) (16-1/2 ft & 19-1/2)

1шт.

7

592098R1

SUPPORT, platform lower diagonal (RH) (16-1/2 ft & 19-1/2 ft)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

593217R1

ANGLE, front apron guide (LH Shown) (13-1/2 ft)

1шт.

8

593218R1

ANGLE, front apron guide (RH) (13-1/2 ft) (For use w/597123R93 wide canvas APRON)

1шт.

8

593219R1

ANGLE, front apron guide (LH) (19-1/2 ft)

1шт.

8

593220R1

ANGLE, front apron guide (RH) (19-1/2 ft)

1шт.

8

592107R1

ANGLE, front apron guide (LH) (16-1/2 ft)

1шт.

8

592108R1

ANGLE, front apron guide (RH) (16-1/2 ft)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8" (6-13-1/2 ft, 10-16-1/2 ft, 14-9-1/2 ft)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

9

592085R21

SUPPORT, platform lift center

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1"

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

10

608727R2

REINFORCEMENT, apron support LH Shown

1шт.

10

592110R1

REINFORCEMENT, apron support RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

593221R1

SUPPORT, front apron (10-1/2 ft)

2шт.

11

593222R1

SUPPORT, front apron (13-1/2 ft)

2шт.

11

593223R1

SUPPORT, front apron (19-1/2 ft)

2шт.

11

592109R1

SUPPORT, front apron (16-1/2 ft)

2шт.

22478R1

BOLT, 5/16 x 7/8" Type 1 No. 3 plow

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

593224R1

SUPPORT, center apron (10-1/2 ft)

2шт.

12

593225R1

SUPPORT, center apron (13-1/2 ft)

2шт.

12

593226R1

SUPPORT, center apron (19-1/2 ft)

2шт.

12

592111R1

SUPPORT, center apron (16-1/2 ft)

2шт.

22478R1

BOLT, 5/16 x 7/8" Type 1 No. 3 plow

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

293227R1

SECTION, apron guide rear (LH Shown) (10-1/2 ft)

1шт.

13

593228R1

SECTION, apron guide rear (RH) (10-1/2 ft)

1шт.

13

593229R1

SECTION, apron guide rear (LH) (13-1/2 ft)

1шт.

13

593230R1

SECTION, apron guide rear (RH) (13-1/2 ft)

1шт.

13

593231R1

SECTION, apron guide rear (LH) (19-1/2 ft)

1шт.

13

593232R1

SECTION, apron guide rear (RH) (19-1/2 ft)

1шт.

13

592112R2

SECTION, apron guide rear (LH) (16-1/2 ft)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg (8-10-1/2 ft, 12-13-1/2 ft, 14-16-1/2 ft, 16-19-1/2 ft)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg (16-1/2 ft & 19-1/2 ft)

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

14

594376R1

PIPE, crankshaft bearing support LH (to be welded to platform frame) (For service order w/1-565672R91 BEARING & 1-455104R11 COLLAR)

1шт.

15

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel shaft

1шт.

16

455104R11

COLLAR

W/SCREW, bearing locking (Includes 1-102592 SCREW)

1шт.

102592R1

SCREW, 3/8 x 3/8" cup-pt set

1шт.
