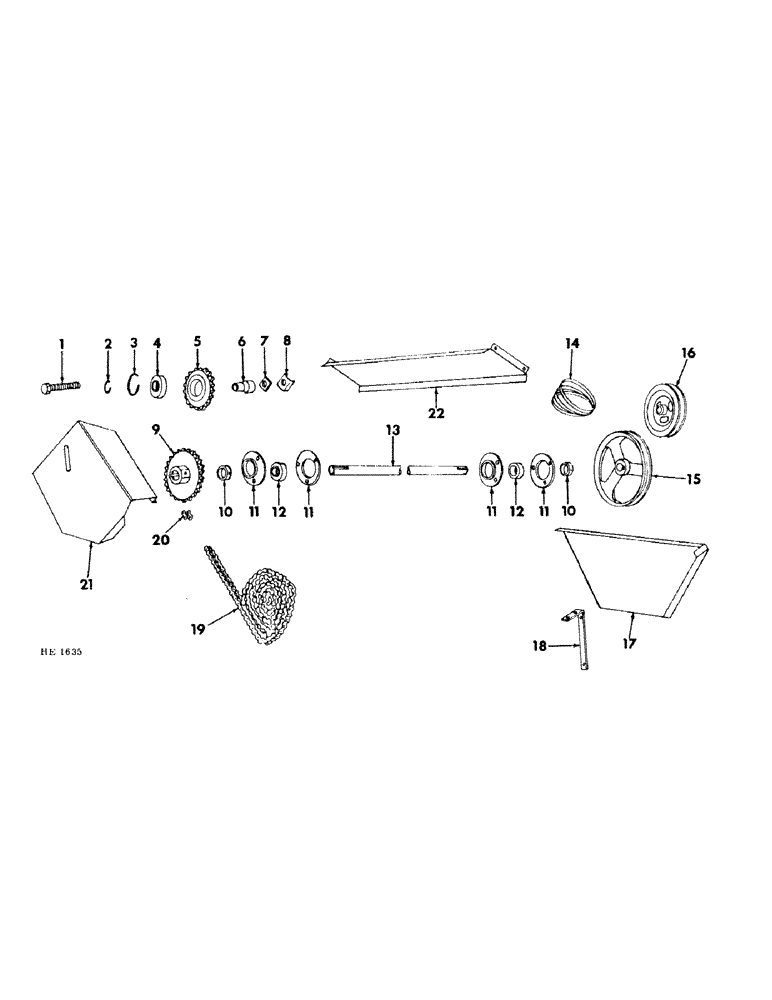

Запчасти Case IH 210 (P-06) - HAY CONDITIONER, HAY CONDITIONER DRIVE PARTS, USE W/10-1/2 FT. PLATFORM AND PICK UP REEL Hay Conditioner

1

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

sprocket mounting

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga

2шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga

1шт.

2

26540D

RING, SNAP

RING, bearing bushing retaining

1шт.

3

512889R1

RING

bearing retaining

1шт.

4

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

tightener sprocket (opt w/584148R91, BEARING)

1шт.

4

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, tightener sprocket (opt w/608697R91, BEARING)

1шт.

5

593323R11

SPROCKET ASSY.

SPROCKET, 22T, chain tightener

1шт.

6

593322R1

BUSHING, tightener sprocket

1шт.

7

613200R1

WASHER, lock-out

1шт.

8

593321R11

BRACKET, tightener

1шт.

9

593319R11

SPROCKET, 26T jackshaft driven

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 2-1/4" sq

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

10

557117R11

COLLAR

COLLAR W/SCREW, bearing locking (Includes 1-115321, SCREW)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls-cup pt-set

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, jackshaft bearing

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

566634R91

BEARING

jackshaft

2шт.

13

593318R1

SHAFT, drive jack

1шт.

14

596595R1

V-BELT,0.88" W x 67.56" L

Jackshaft drive 0.88" W x 67.56" L

1шт.

15

593316R1

PULLEY, jackshaft drive

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 2-1/4" sq

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

16

593315R1

PULLEY, main drive

1шт.

17

825154C1

SHIELD, main drive

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

593340R1

SUPPORT, main drive shield

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

22859R1

WASHER

11/32 x 3/4 x 7 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

CHAIN, No. 60 3/4" pitch, light side bar type (For service order 1-611362R91 10 ft. length of chain, reduce to 137 links and add 1-611361R91 connecting link)

1шт.

20

611361R91

DRAG LINK

LINK, connecting

1шт.

21

598552R1

SHIELD, roll drive

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2" crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

592439R1

GUARD, platform drive shaft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
