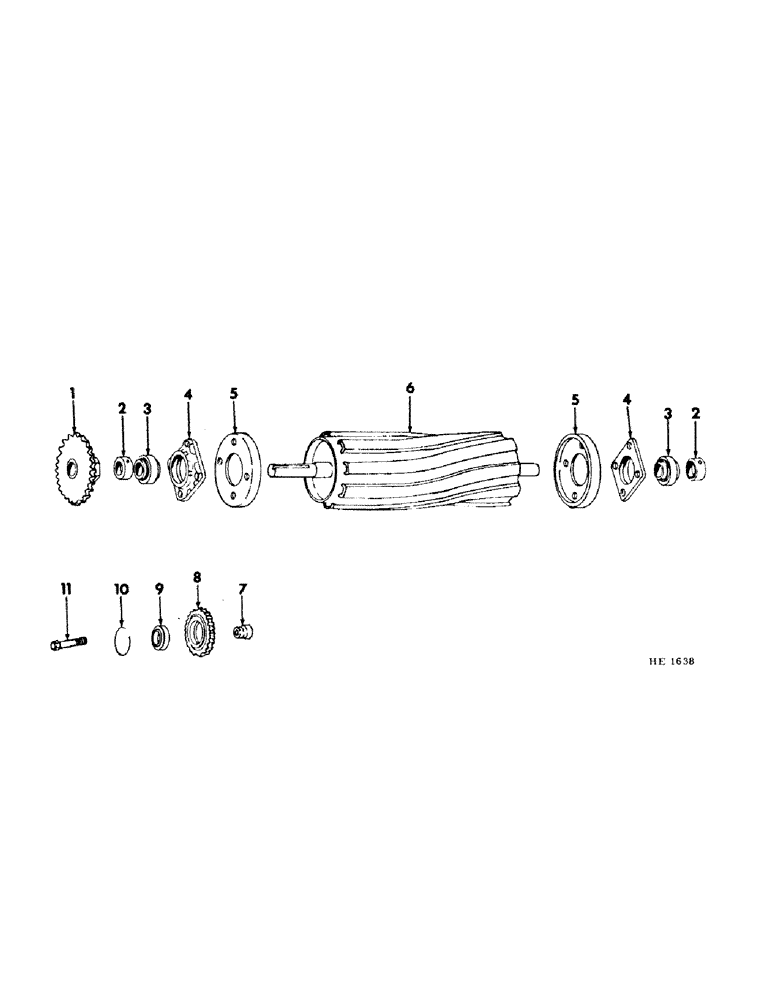

Запчасти Case IH 210 (P-05) - HAY CONDITIONER, HAY CONDITIONER LOWER STEEL ROLL ASSY, FOR USE W/10-1/2 PLATFORM & PICK-UP REEL Hay Conditioner

1

595927R91

SPROCKET ASSY.

SPROCKET, lower roll drive

1шт.

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" tapered-gib-hd

1шт.

2

517645R11

COLLAR

W/SCREW, bearing locking (Includes 1-102592 SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

3

611583R91

BALL BEARING

BEARING, lower roll

2шт.

4

607332R1

HOUSING

lower roll bearing

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

607333R11

SHROUD, lower roll

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

597765R1

ROLL, conditioner steel

1шт.

7

592062R1

BUSHING

idler sprocket bearing

1шт.

8

593323R11

SPROCKET ASSY.

SPROCKET, 22T idler

1шт.

9

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket (opt w/608697R91 BEARING)

1шт.

9

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

idler sprocket (opt w/584148R91 BEARING)

1шт.

10

512889R1

RING

bearing retaining

1шт.

11

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3" sprocket mounting

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga

1шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga

1шт.
