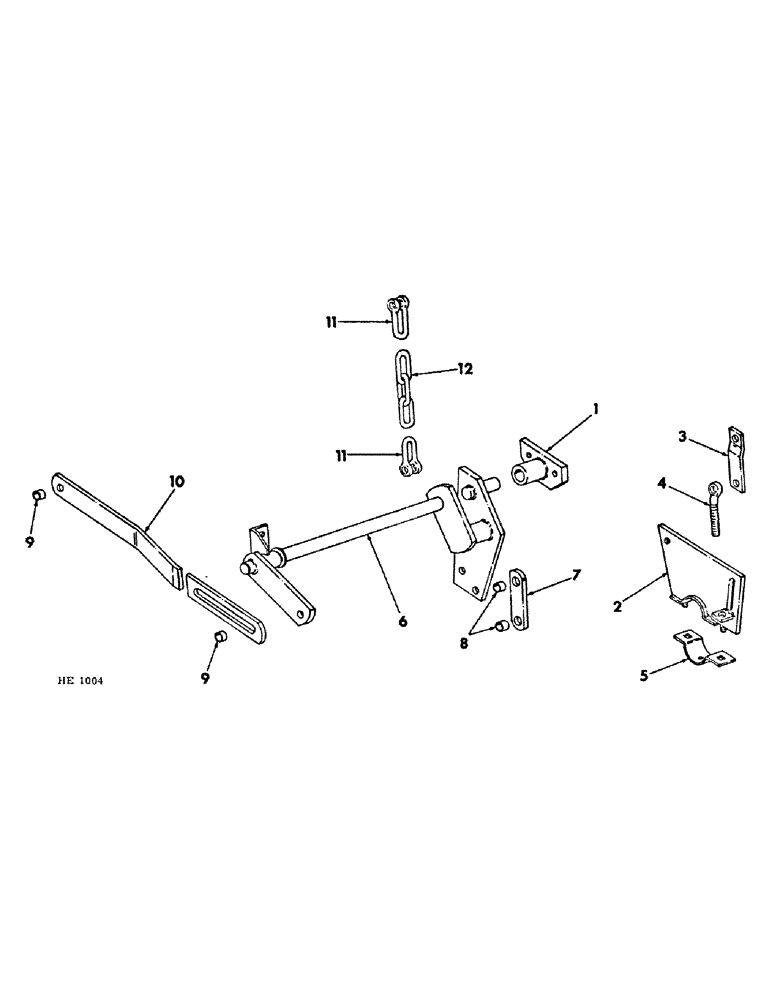

Запчасти Case IH 210 (P-03) - HAY CONDITIONER, HAY CONDITIONER LIFT MECHANISM, FOR USE W/10-1/2 FT. PLATFORM & PICK UP REEL Hay Conditioner

1

825143C1

SUPPORT, rockshaft

2шт.

271293

PULLEY

FITTING, 5/16" lub

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

825136C1

SUPPORT, frame rear LH Shown

1шт.

2

825137C1

SUPPORT, frame rear RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

3

595895R2

BRACE, adj eyebolt

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4", LH

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2", RH

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

612375R2

BOLT,1/2" - 13 x 4 1/8"

EYEBOLT, frame support adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

593280R1

CLAMP, frame pivot tube

2шт.

6

825145C1

ROCKSHAFT, lift LH Shown

1шт.

6

825146C1

ROCKSHAFT, lift RH

1шт.

271293

PULLEY

FITTING, 5/16" lub

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga

2шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

7

825153C1

SUPPORT, rockshaft connecting

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

2шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2" crg

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

612379R1

SPACER

lift bar pivot

4шт.

9

612378R1

SPACER, connecting support pivot

4шт.

10

825152C1

SUPPORT, rockshaft connecting

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4"

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

455369R2

CLEVIS

lift chain

4шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8" std-hd dld

4шт.

599744R1

AXLE PIN

PIN, quick attachable C

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12

619150R91

CHAIN, height adjustment

2шт.
