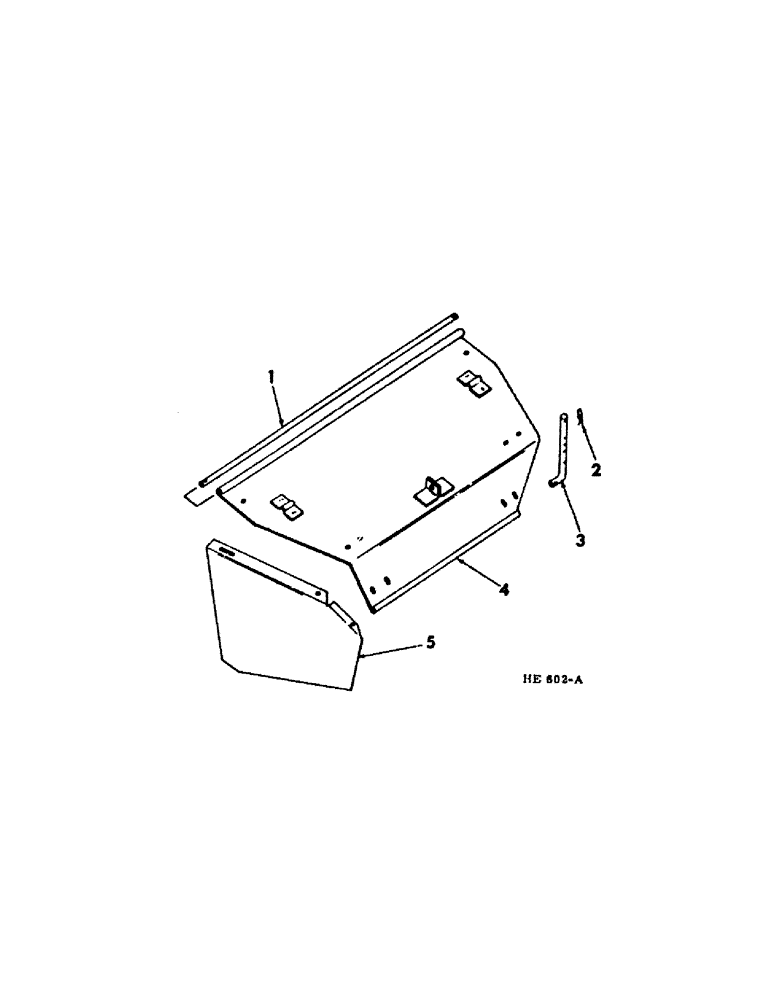

Запчасти Case IH 210 (P-02[A]) - HAY CONDITIONER, REAR DEFLECTOR, FOR USE W/10-1/2 PLATFORM & PICK-UP REEL, PRIOR TO S/N 3700 Hay Conditioner

1

593348R1

ROD, rear deflector pivot

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

599744R1

AXLE PIN

PIN, QA cotter

1шт.

3

607365R2

ROD, adjusting

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

597772R2

DEFLECTOR, rear

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

597775R1

DEFLECTOR, rear side LH Shown

1шт.

5

597776R1

DEFLECTOR, rear side RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
