(H-10[A]) - CONTROLS, BRAKE BAND

Запчасти Case IH 210 (H-10[A]) - CONTROLS, BRAKE BAND Controls

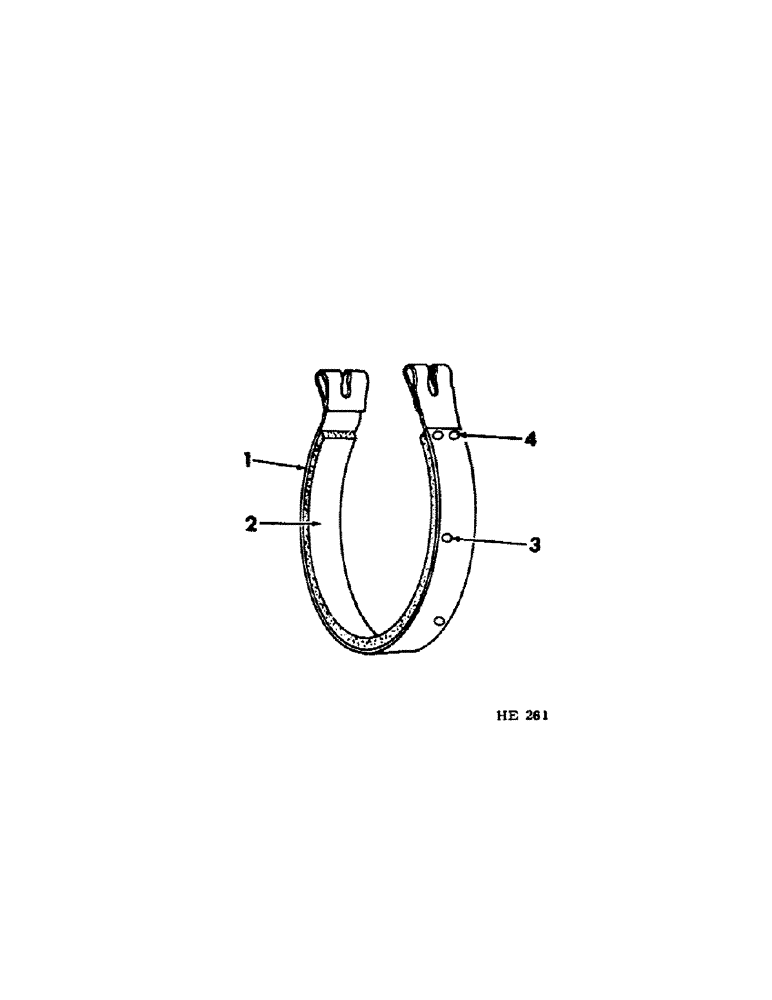

Схема запчастей Case IH 210 - (H-10[A]) - CONTROLS, BRAKE BAND Controls
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BAND, brake (For service order 1-599013R91, BAND ASSY)

2шт.

2

LINING, brake band (For service order 1-599014R11, LINING ASSY)

2шт.

3

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16" csk-hd tubular brass

10шт.

4

21406H

RIVET,Csk Hd, 3/16" x 3/8"

3/16 x 3/8" csk-hd tubular brass

8шт.

599014R11

LINING

ASSY, brake composed of: (1) lining (NSS), (5) rivet 53795V, (4) rivet 21406H

1шт.
