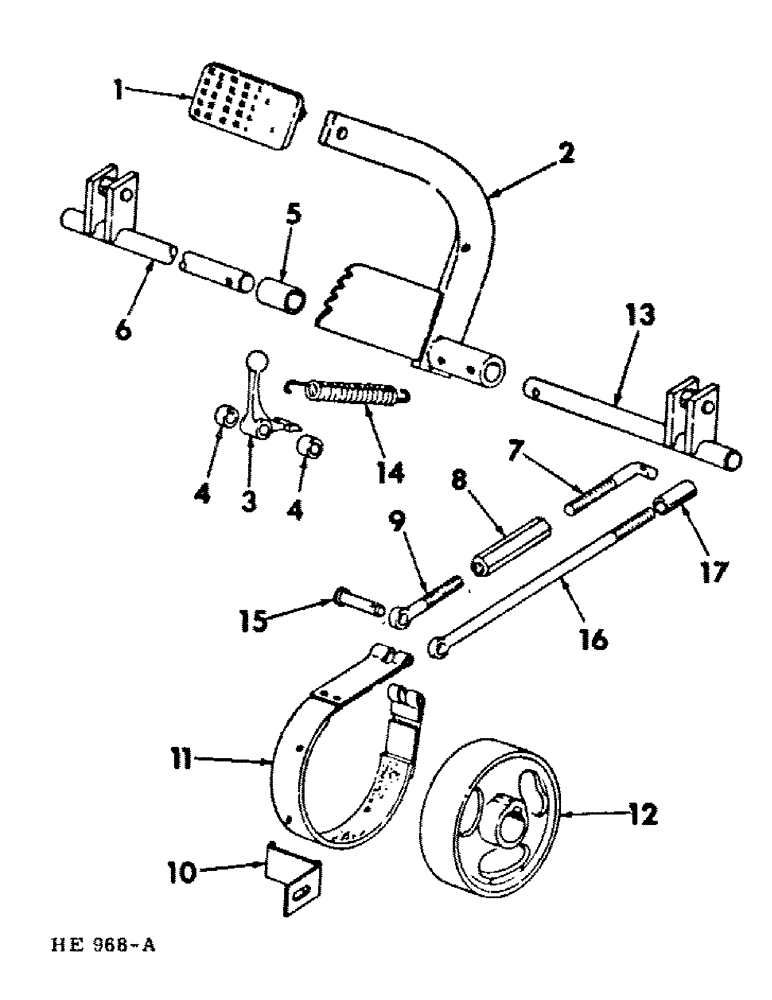

Запчасти Case IH 210 (H-08) - CONTROLS, BRAKES AND CONTROLS Controls

1

599000R1

PAD, brake pedal

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

599001R1

ARM, brake pedal

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

3

611693R2

PAWL, brake pedal lock

1шт.

PG141

PIN

1/2 x 2" std-hd-dld

1шт.

4

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

pawl

2шт.

5

599010R1

SPACER, clutch rockshaft

1шт.

6

ROCKSHAFT, brake LH (Prior to Serial No. 1776 order 1-823006C1 ROCKSHAFT, 1-596380R1, BOLT; 2-120377, NUT and 1-86313R1, SPACER)

1шт.

6

823006C1

ROCKSHAFT, brake LH (Serial No. 1776 and Since)

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

599012R2

ROD, brake band adjusting (Prior to Serial No. 1776)

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

8

613596R1

TURNBUCKLE, brake band (Prior to Serial No. 1776)

2шт.

9

599011R1

BOLT, brake adjusting eye (Prior to Serial No. 1776)

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

599017R1

GUIDE, brake band

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

599013R91

BAND

ASSY, brake (For service parts refer to "BRAKE BAND")

2шт.

12

599016R1

HUB, brake

2шт.

117977

WOODRUFF KEY

KEY, Woodruff, 5/16 x 1"

2шт.

13

ROCKSHAFT, brake RH (Prior to Serial No. 1776 order 1-823007C1, ROCKSHAFT, 1-596380R1, BOLT; 2-120377, NUT and 1-86313R1, SPACER)

1шт.

13

823007C1

ROCKSHAFT, brake RH (Serial No. 1776 and Since)

1шт.

14

510029R1

SPRING

pedal return

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

1шт.

120376

NUT,5/16"-18, G5

2шт.

15

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

610784R2

C-PIN, Q.A.

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

16

596380R1

BOLT, brake adjusting (Serial No. 1776 and Since)

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17

86313R1

SPACER,3/8" X-Strng Pipe x 1 3/8"

adjusting bolt (Serial No. 1776 and Since)

2шт.
