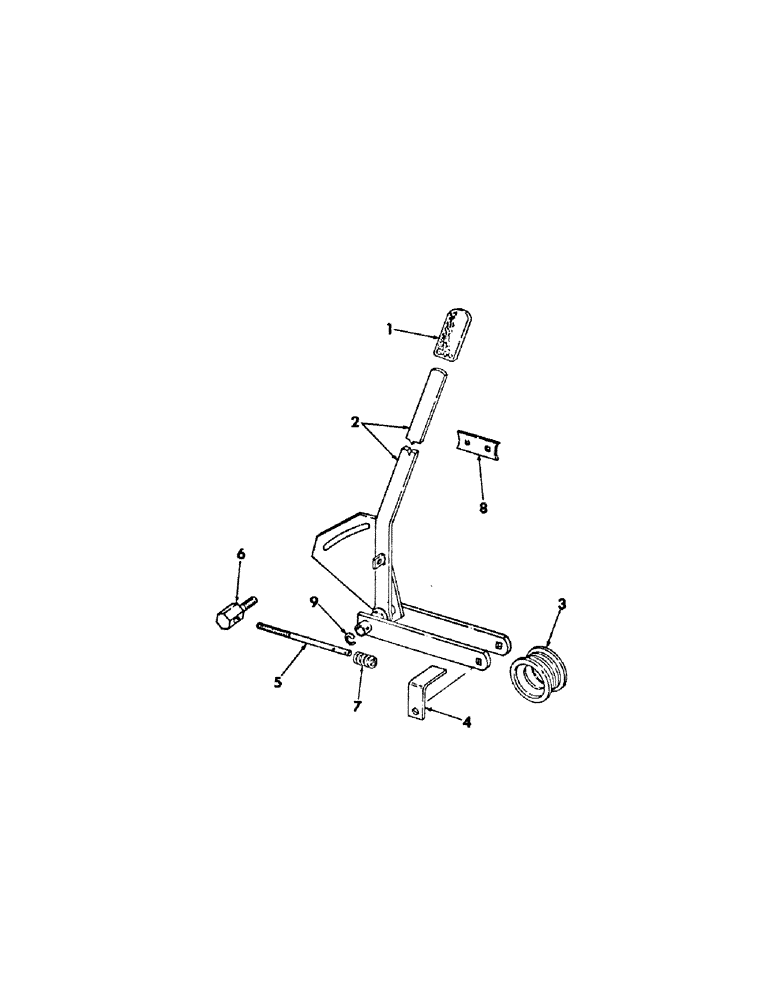

Запчасти Case IH 210 (H-03) - CONTROLS, PLATFORM DRIVE CONTROL, FOR USE WITH HAY CONDITIONER, PRIOR TO SERIAL NUMBER 3700 Controls

1

938885R1

GRIP

control lever handle

1шт.

2

599065R1

ROCKSHAFT, platform drive

1шт.

271293

PULLEY

FITTING, 5/16" lub

1шт.

3

PULLEY, platform drive idler (For service parts refer to "PLATFORM DRIVE w/ENGINE FLYWHEEL AND PTO" Section B)

1шт.

4

592063R1

ANGLE, platform drive belt retainer

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4" Type 1 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

599098R1

ROD, lever tension

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

595848R1

NUT

LK-NUT, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

599138R1

STUD, lever adjusting

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

611420R1

SPRING

lever adjusting

3шт.

8

599130R1

BAR, platform lever stop

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

461049R1

OIL SEAL

SPACER, rockshaft

1шт.
