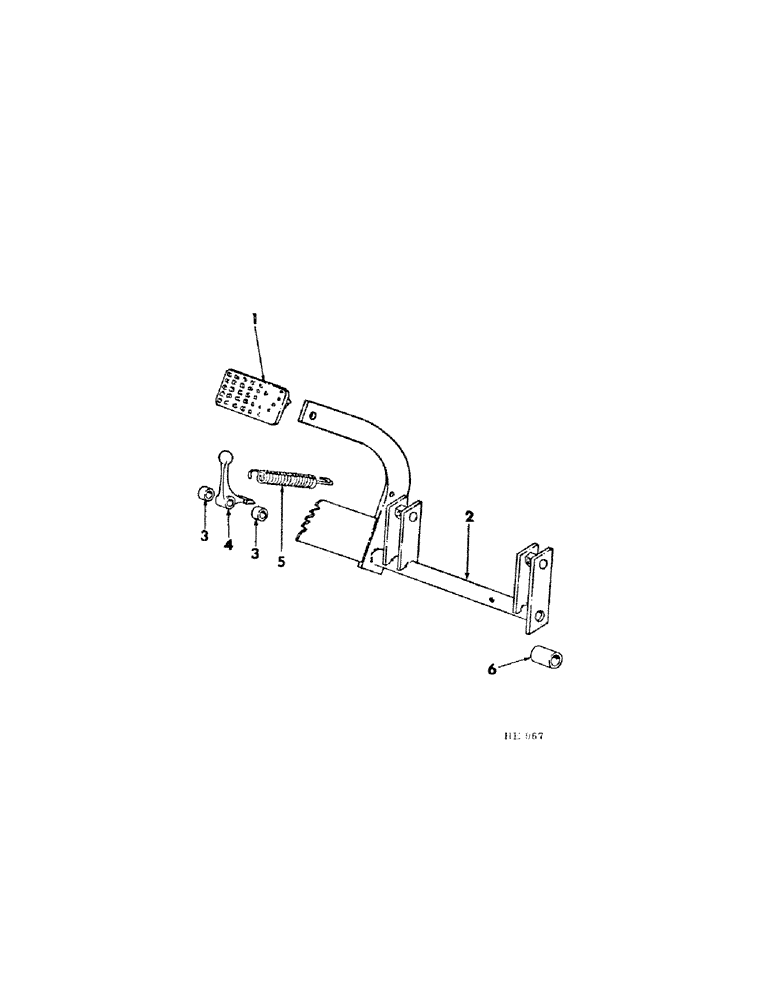

Запчасти Case IH 210 (H-03[A]) - CONTROLS, CLUTCH CONTROL Controls

1

599000R1

PAD, clutch pedal

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

599121R1

ROCKSHAFT, clutch pedal

1шт.

271293

PULLEY

FITTING, 5/16" lub

1шт.

3

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

pawl

2шт.

4

611693R2

PAWL, clutch pedal lock

1шт.

PG141

PIN

1/2 x 2" std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

510029R1

SPRING

pedal return

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

1шт.

120376

NUT,5/16"-18, G5

2шт.

6

599010R1

SPACER, clutch rockshaft

1шт.
