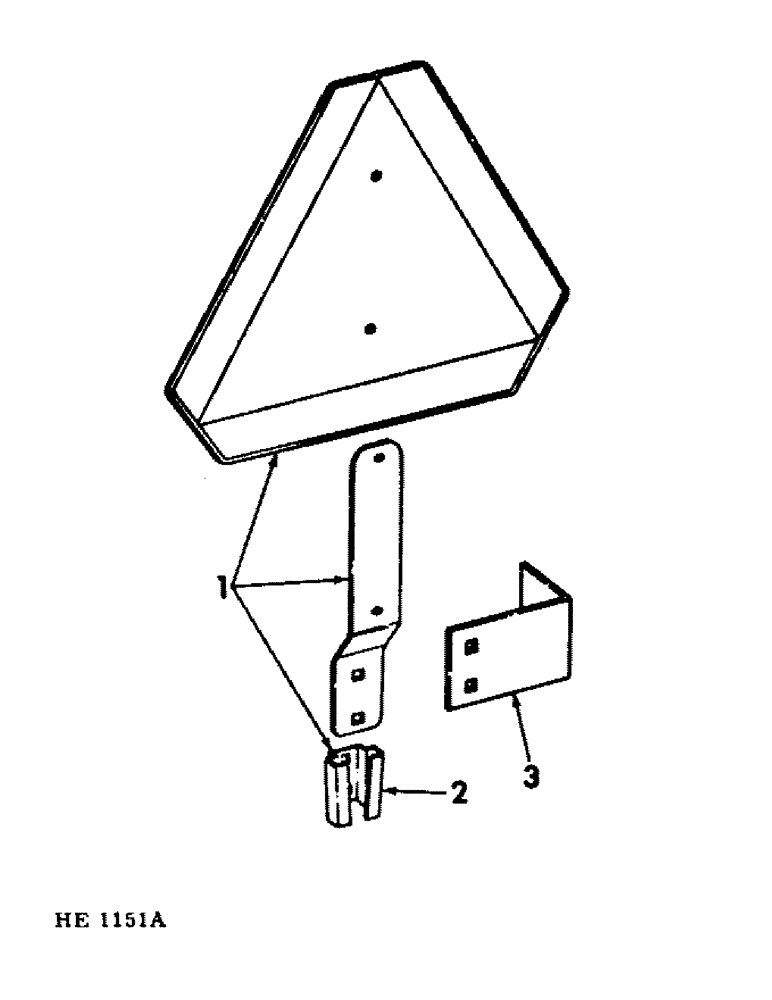

Запчасти Case IH 210 (A-11) - CHASSIS, RADIATOR AND SHEET METAL, S.M.V. EMBLEM Chassis, Radiator & Sheet Metal

1

407220R1

PRODUCT GRAPHIC

PACKAGE, S.M.V. emblem, steel

1шт.

407218R1

PACKAGE

S.M.V. emblem, aluminum composed of : (1) shield (NSS), (1) support (NSS), (1) bracket (NSS)

1шт.

2

398976R1

BRACKET

warning lamp and S.M.V. mounting (Prior to Serial No. 3700)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

826201C1

ANGLE, S.M.V. emblem mounting (Serial No. 3700 and Since)

1шт.

Not part of S.M.V. package.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
