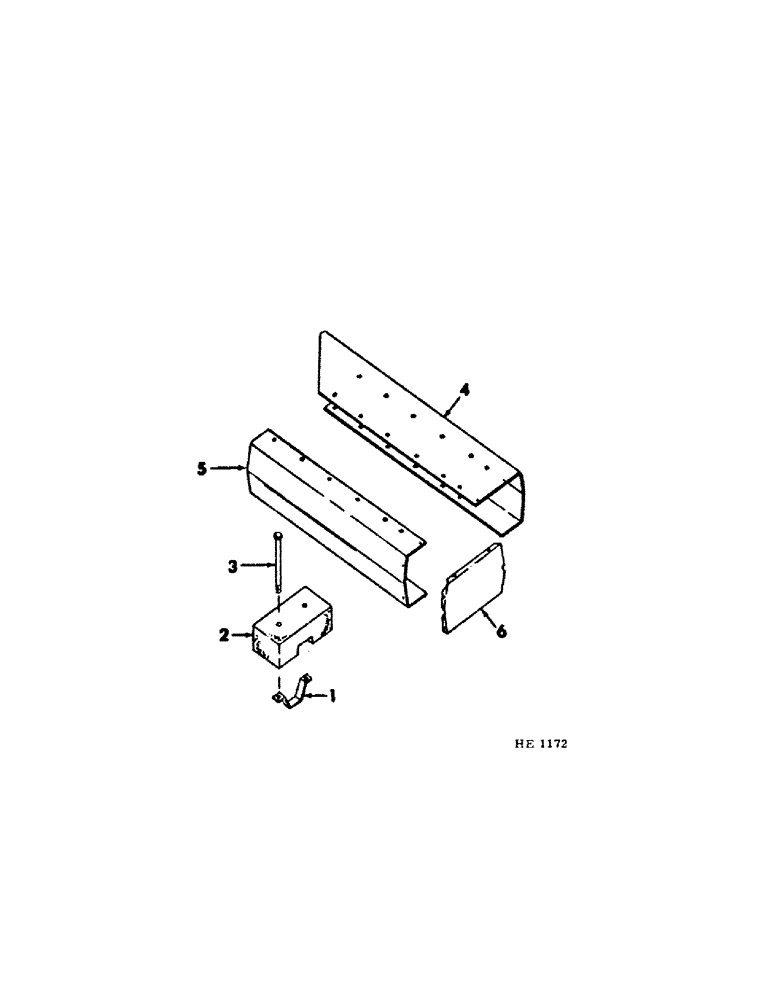

Запчасти Case IH 210 (A-10[A]) - CHASSIS, RADIATOR AND SHEET METAL, CASTER WHEEL BEAM WEIGHTS, SERIAL NUMBER 3700 AND SINCE Chassis, Radiator & Sheet Metal

1

825455C1

SUPPORT, beam weight block (5 used 16-1/2 ft. and 19-1/2 ft. platform w/bat reel)

3шт.

2

825454C1

BLOCK, weight (10 used 16-1/2 ft. and 19-1/2 ft. platform w/bat reel)

6шт.

3

825000C1

BOLT, 1/2 x 17" support (10 used 16-1/2 ft. and 19-1/2 ft. platform w/bat reel)

6шт.

21883R1

WASHER

BOLT, 17/32 x 1-3/4 x 11 ga (1 per BOLT)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (2 per bolt) 1/2"-13, G5

1шт.

4

825457C1

SHIELD, weight RH

1шт.

5

825481C1

SHIELD, weight LH

1шт.

6

825458C1

COVER, weight block

1шт.

564791R1

SPRING NUT

speed

6шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" rd-hd slt

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.
