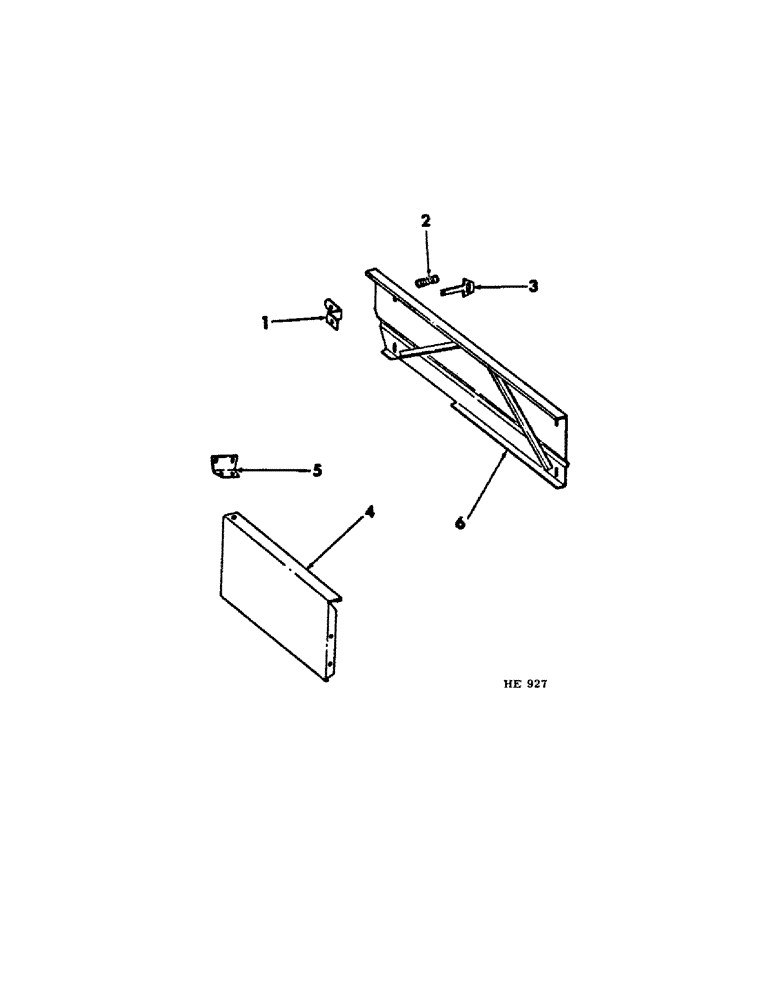

Запчасти Case IH 210 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE SHIELDS, PRIOR TO SERIAL NUMBER 3700 Chassis, Radiator & Sheet Metal

1

599267R1

SUPPORT, engine shield LH

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

M296

SPRING

latch

4шт.

3

593377R1

LATCH

shield retainer LH

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

4

599270R1

SHIELD, engine RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

825380C1

SUPPORT, engine shield RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

599269R1

SHIELD, engine LH

1шт.
