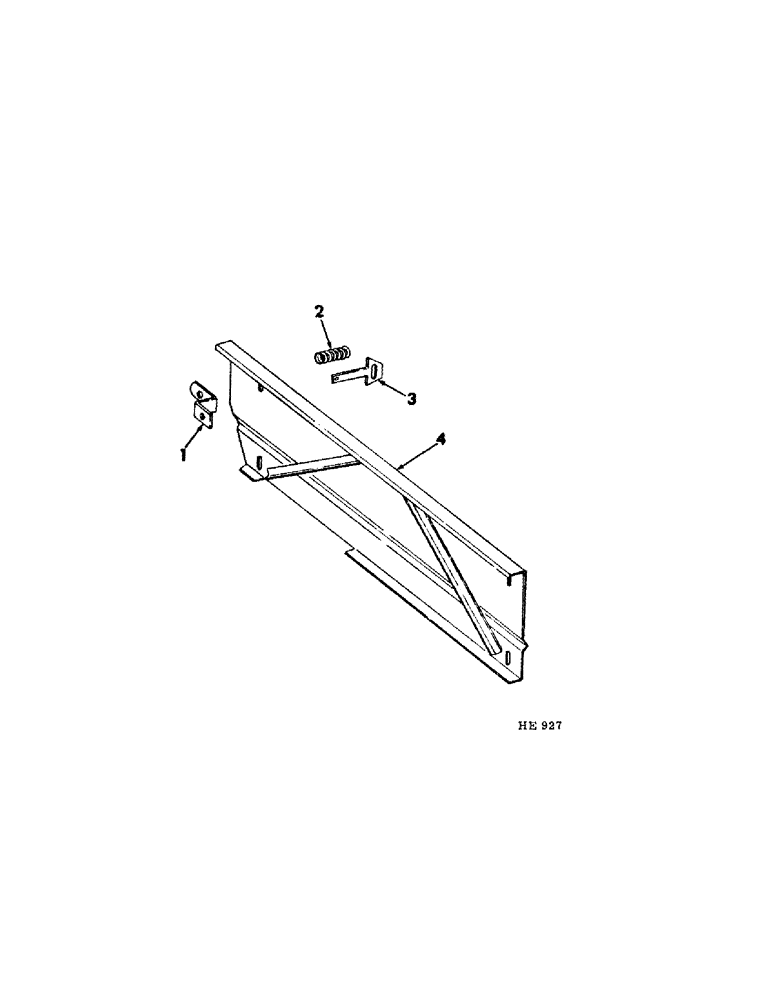

Запчасти Case IH 210 (A-05[A]) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE SHIELDS, SERIAL NUMBER 3700 AND SINCE Chassis, Radiator & Sheet Metal

1

599267R1

SUPPORT, engine shield LH

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

M296

SPRING

latch

4шт.

3

593377R1

LATCH

shield retainer LH

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

4

599269R1

SHIELD, engine LH

1шт.
