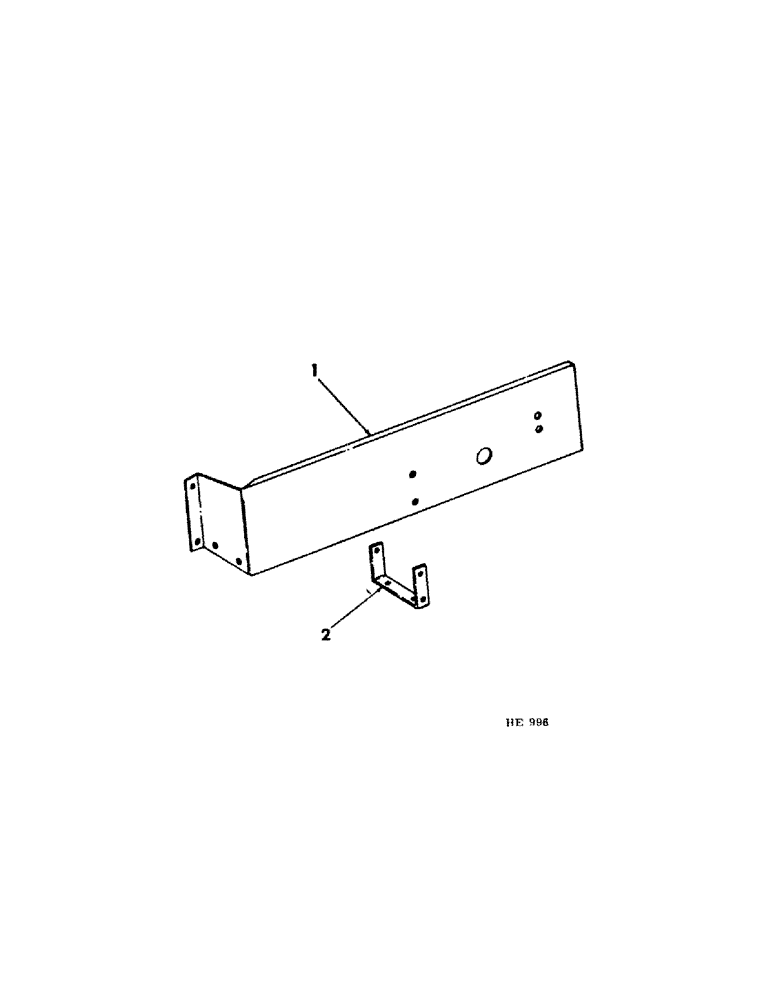

Запчасти Case IH 210 (A-04[A]) - CHASSIS, RADIATOR AND SHEET METAL, CHASSIS PLATFORM DRIVE SHIELD, RIGHT HAND Chassis, Radiator & Sheet Metal

1

825121C2

SHIELD, platform drive RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120373

NUT, 5/16"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

2

825122C1

CHANNEL, shield support

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
