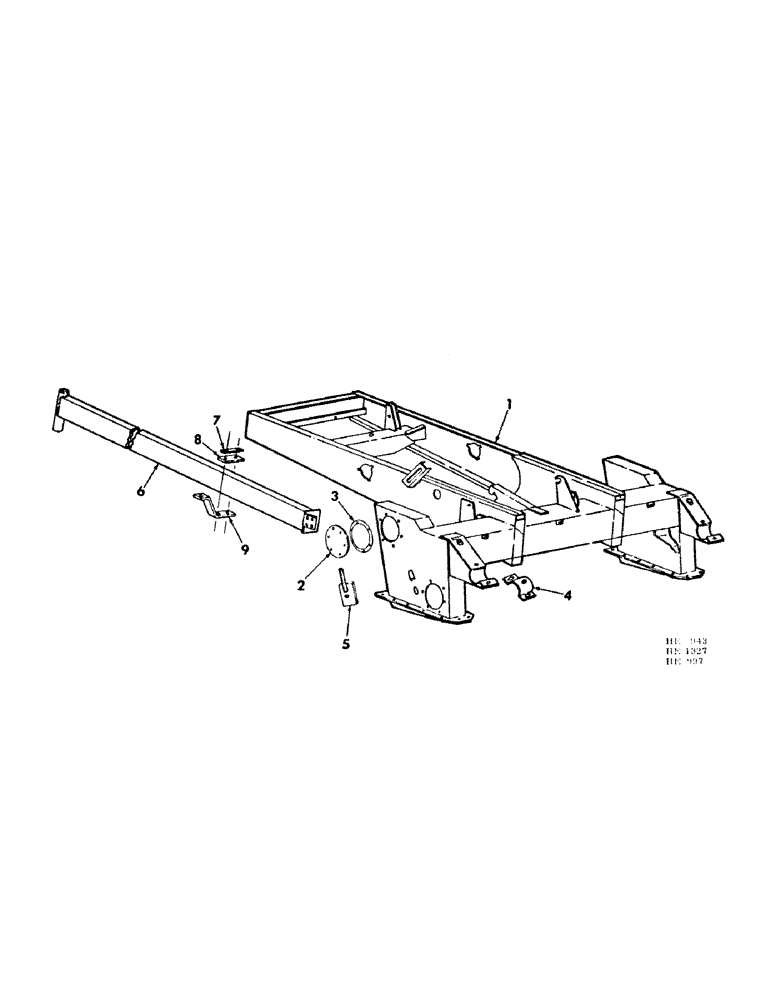

Запчасти Case IH 210 (A-03) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME, SERIAL NUMBER 3700 AND SINCE Chassis, Radiator & Sheet Metal

1

823073C1

FRAME, main chassis

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

599960R1

COVER, final drive hand hole

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

3

599961R1

GASKET, final drive hand hole cover

4шт.

4

594187R1

CLAMP

platform upper pivot bearing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2"

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

ADJUSTER ASSY, main wheel (For service parts refer to "Final Drive" Section B)

1шт.

6

824938C1

BEAM, tail

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

7

826200C1

BAR, beam anchor upper inner

1шт.

8

825693C1

BAR, beam anchor upper

1шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

3/4 x 10"

2шт.

280954

NUT,3/4"-10, G5

4шт.

9

825694C1

SUPPORT, tail beam rear

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2"

1шт.

280954

NUT,3/4"-10, G5

1шт.
