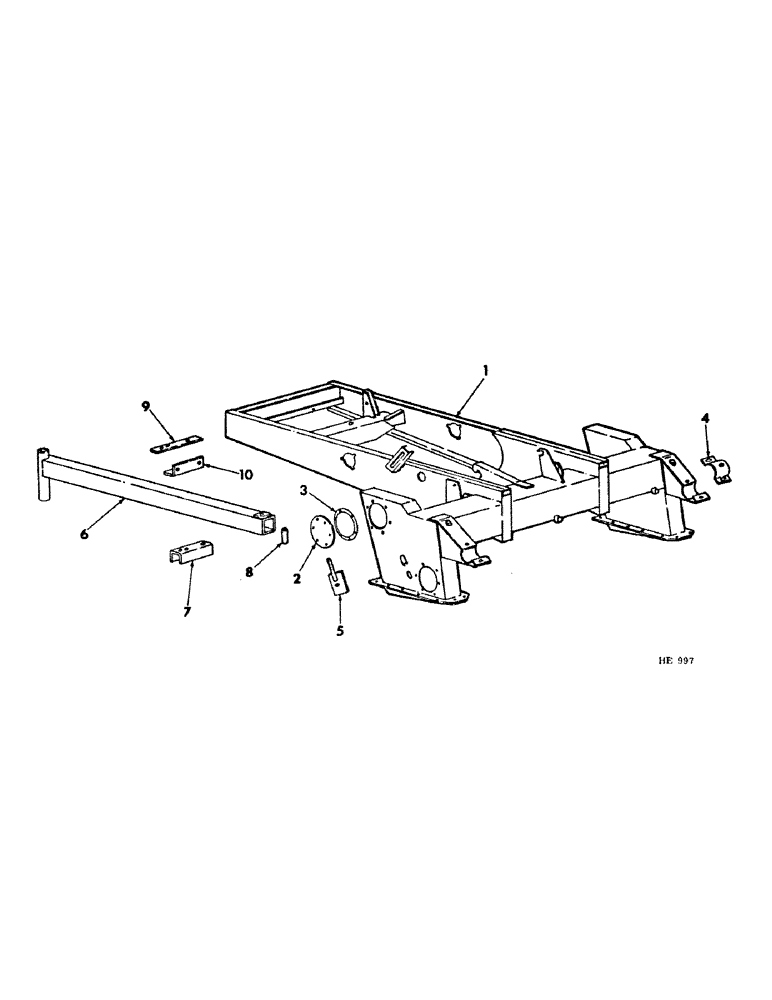

Запчасти Case IH 210 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME, PRIOR TO SERIAL NUMBER 3700 Chassis, Radiator & Sheet Metal

1

825123C2

FRAME, main chassis

1шт.

2

599960R1

COVER, final drive hand hole

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

3

599961R1

GASKET, final drive hand hole cover

4шт.

4

594187R1

CLAMP

platform upper pivot bearing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2"

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

ADJUSTER ASSY, main wheel (For service parts refer to "FINAL DRIVE" Section B)

4шт.

6

599273R1

BEAM, caster wheel

1шт.

21543R1

BOLT, 7/8 x 6-1/2"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

3шт.

426767

NUT,7/8"-14, G5

7/8"

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

599280R1

CHANNEL, beam support

1шт.

8

599277R1

SPACER, beam

1шт.

9

599278R1

BAR, beam rear anchor

1шт.

10

599279R1

ANGLE, caster wheel beam rear mounting

1шт.

20918R1

SCREW

BOLT, 3/4 x 7"

2шт.

426099

NUT,3/4"-16, G5

3/4"

4шт.
