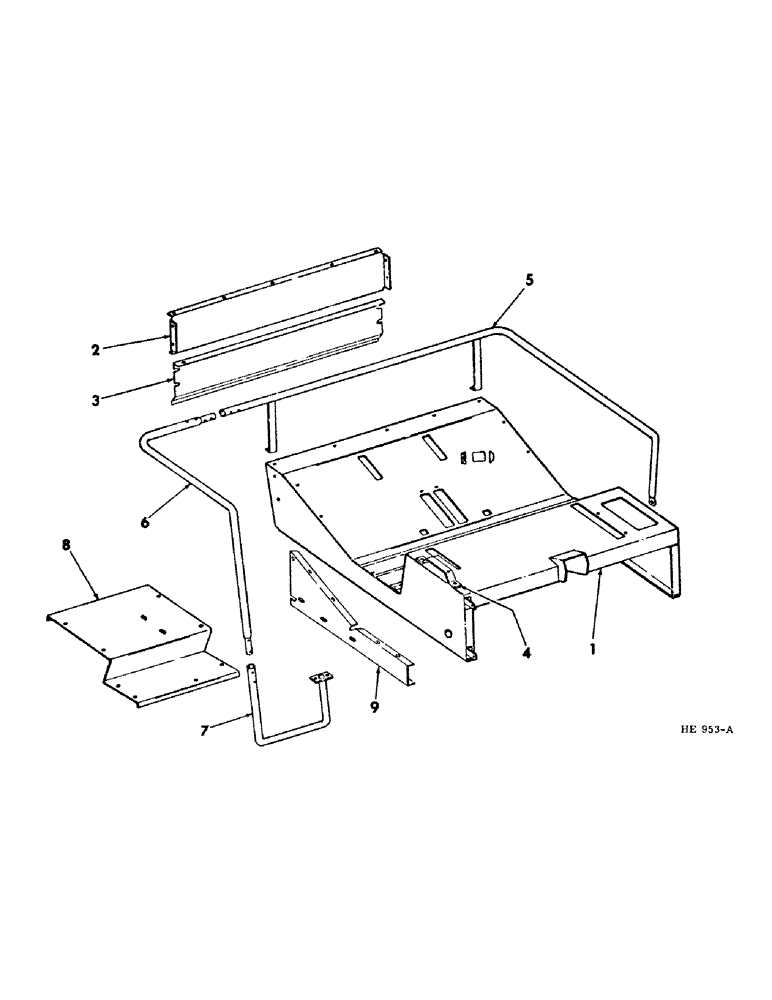

Запчасти Case IH 210 (M-10) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS PLATFORM, PRIOR TO SERIAL NUMBER 3700 (10) - OPERATORS PLATFORM

1

599241R2

PLATFORM, operator's

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

599257R1

PANEL, operator's platform front upper

1шт.

180016

SPRING

1/4 x 1/2"

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

3

599258R1

PANEL, operators platform front lower

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2" Type B self-tapping

4шт.

21801R1

WASHER

9-3/32 x 3/4 x 16 ga

4шт.

4

591841R1

STRIP

HANDLE, operator's platform

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

591842R11

RAIL, guard RH

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

591844R1

RAIL, guard LH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

599264R1

LADDER, operator's platform

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

599266R1

STEP, ladder

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3/8 x 3/4"

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

9

599734R2

SUPPORT, operator's platform LH Shown

1шт.

9

599735R2

SUPPORT, operator's platform RH (For use w/canopy)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1"

12шт.

20803R1

WASHER

13/32 x 1 x 11 ga

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.
