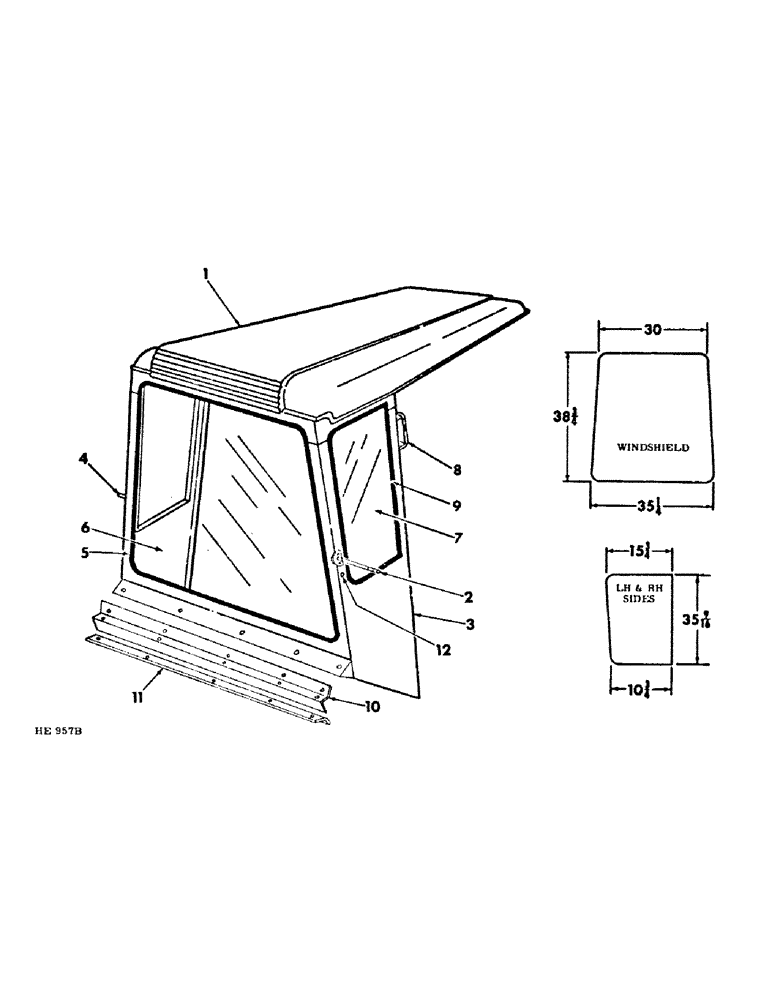

Запчасти Case IH 210 (M-07) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, CANOPY, SERIAL NUMBER 3700 AND SINCE (10) - OPERATORS PLATFORM

1

599724R1

ROOF, canopy

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 ga

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

826683C1

EXTENSION, lamp mounting LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

826857C91

FRAME W/GLASS, canopy

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 ga

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

826690C1

SUPPORT, lamp mounting RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

STRIP, single rubber glass moulding (Dealer to supply from 50 ft. roll bulk stock part No. 599532R1) (12 ft. length required)

1шт.

6

599729R1

GLASS, windshield

1шт.

7

599730R1

GLASS, side LH and RH

2шт.

8

915794R91

MIRROR, rear view

1шт.

9

STRIP, single rubber glass moulding (Dealer to supply from 50 ft. roll bulk stock part No. 599532R1) (9 ft. length required)

2шт.

10

826714C1

COVER, canopy lower front

1шт.

180016

SPRING

1/4 x 1/2"

5шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

11

826715C1

ANGLE, canopy front reinforcing

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3/8"

5шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

5шт.

12

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

No. 2 diagonal cut

2шт.
