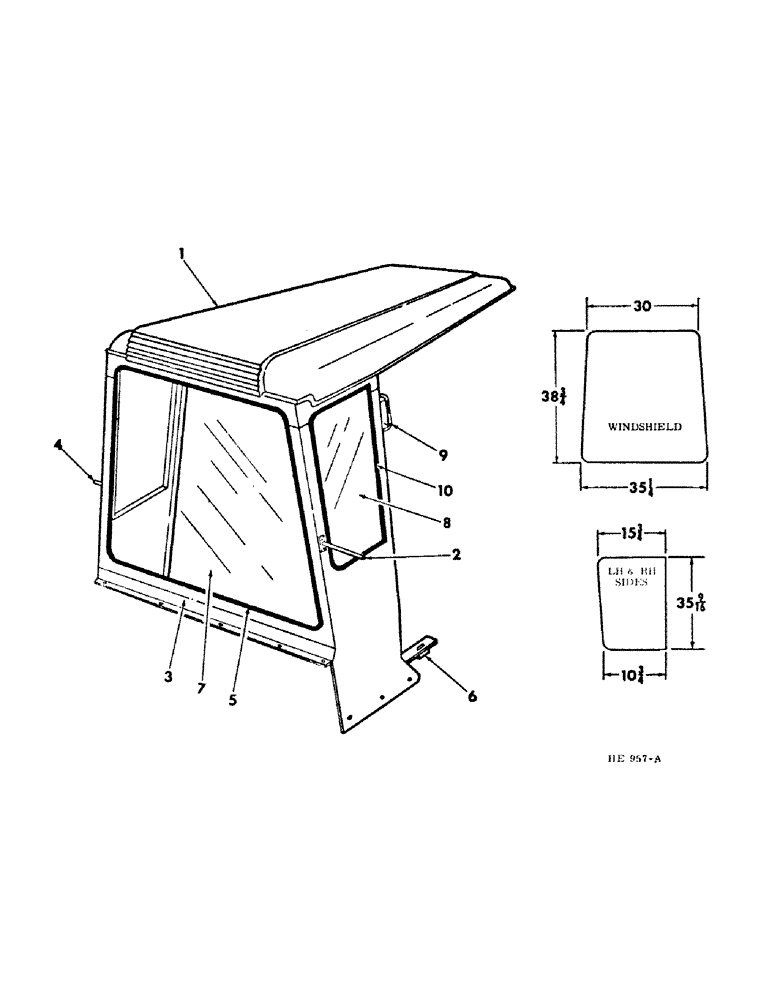

Запчасти Case IH 210 (M-06) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, CANOPY, PRIOR TO SERIAL NUMBER 3700 (10) - OPERATORS PLATFORM

1

599724R1

ROOF, canopy

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 ga

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

599725R1

BRACKET, lamp mounting LH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

599727R1

FRAME W/GLASS, canopy

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 ga

8шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

599726R1

BRACKET, lamp mounting RH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

STRIP, single rubber glass moulding (Dealer to supply from 50 ft. roll bulk stock part No. 599532R1) (12 ft. length required)

1шт.

6

599728R1

PAD, anti-vibration

8шт.

7

599729R1

GLASS, windshield

1шт.

8

599730R1

GLASS, side LH and RH

2шт.

9

915794R91

MIRROR, rear view

1шт.

10

STRIP, single rubber glass moulding (Dealer to supply from 50 ft. roll bulk stock part No. 599532R1 (9 ft. length required)

2шт.
